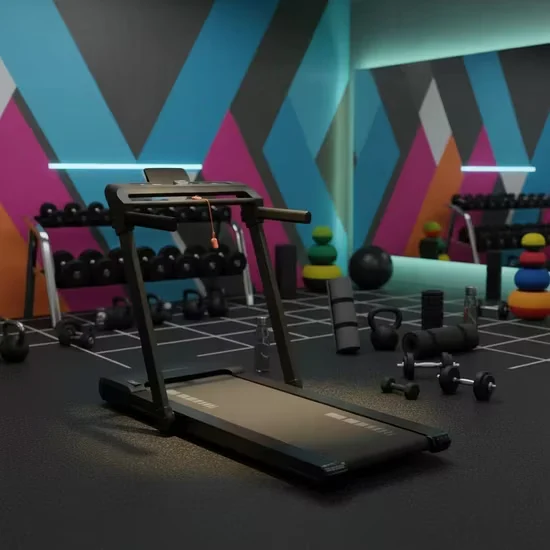

Healthmate Compact Folding Walking Treadmill with Remote Control

Engineered for confined spaces — The folded mechanism uses reinforced pivot pins and locking brackets to eliminate wobble after repeated fold-unfold cycles, while the motorized drive system maintains consistent belt speed under dynamic walking loads.

Technical Specifications

Application Suitability

Where Frame Flex Compromises a Compact Walking Treadmill

Thin-gauge steel and unreinforced folding joints are the first points of failure in small-footprint treadmills.

When a compact folding walking treadmill is built with lightweight tubing to reduce shipping weight, the frame deflects under repeated foot strikes. Over hundreds of walking sessions, this deflection concentrates stress at the folding pivot — the exact joint meant to hold the unit rigid during use. Operators in high-traffic hotel fitness rooms report handlebar wobble and belt misalignment within months, not because the motor fails, but because the structural platform beneath it has loosened [NEED_CITE: fatigue performance of thin-walled steel tubes under cyclic loading]. The compact folding walking treadmill must resist this degradation through adequate frame gauge and a locking mechanism that maintains positional accuracy across thousands of fold cycles.

Positioning Within a Multi-Use Fitness Space

This compact folding walking treadmill occupies the light-cardio tier of a mixed-use facility — serving as a warm-up station, a recovery walk between strength sets, or a standalone cardio option where floor space is at a premium. It pairs with functional rigs and free-weight zones by providing low-impact cardiovascular movement without consuming the footprint of a full-size commercial treadmill. The 1000 x 400 mm running surface accommodates walking and light jogging for users across a broad height and stride range, while the folding capability allows the unit to be stored vertically when the space must serve other functions.

Structural Stress Under Repeated Folding and Walking Loads

Every fold-unfold cycle loads the pivot bracket and locking pin with the full weight of the frame and motor assembly. In units where these joints are secured with thin stamped brackets or friction-only latches, play develops quickly — first as a subtle handlebar shake, then as visible misalignment between the running deck and the side rails. The motorized drive system adds another stress dimension: the drive roller bearings must sustain continuous rotation at variable speeds while the belt tension fluctuates with each foot strike. Without sealed bearings and adequate motor ventilation, thermal buildup accelerates bearing wear and can trigger premature motor shutdown during extended use sessions [NEED_CITE: bearing seal ratings and thermal management in continuous-duty electric motors].

Reading the Structural Specifications That Matter

The running surface dimension of 1000 x 400 mm defines the usable stride zone — wide enough for natural walking gait patterns without forcing users into an unnaturally narrow foot placement. The product dimensions of 1250 x 590 x 1080 mm represent the operational footprint; the folded profile determines storage efficiency and must be verified against available wall or closet space. The 1–12 km/h speed range covers walking through light jogging, while the 6 preset programs provide structured variation without requiring manual console input. The LED display tracks speed, distance, time, and calories — the four metrics most relevant to unstructured cardio sessions. Net weight in the 100–160 kg range indicates frame mass sufficient to resist vibration during use, though the exact figure depends on configuration and optional components.

The Hidden Cost of Structural Shortcuts in Compact Cardio

Manufacturers seeking to reduce per-unit cost on a compact folding walking treadmill often thin the frame tubing, simplify the folding mechanism, or omit bearing seals. The consequences surface in sequence: frame flex leads to joint loosement, joint loosement leads to belt tracking problems, belt problems lead to motor strain, and motor strain leads to premature drive-system failure. Each stage increases maintenance frequency and shortens replacement intervals. Non-sealed bearings in dusty or humid environments accumulate debris that accelerates wear, while inadequate powder coating thickness allows corrosion to begin at contact points and fastener holes — the areas most exposed to sweat and cleaning chemicals [NEED_CITE: corrosion initiation sites in powder-coated steel under moisture exposure].

Why Source This Compact Folding Walking Treadmill From BICKFIT

The frame construction uses traceable steel with verified gauge specifications, ensuring the structural platform resists deflection under repeated walking loads. Robotic MIG welding produces continuous weld lines at the folding pivot and motor mount — the highest-stress junctions in any folding treadmill design. Every unit undergoes load testing before shipment, verifying that the folding mechanism, locking pin, and running deck maintain structural integrity under operational weight. The 200μm industrial powder coating provides scratch and corrosion resistance across the full frame surface, including the folding joint areas most vulnerable to wear. BICKFIT also provides 2D-3D CAD layout support, ensuring the compact folding walking treadmill fits within designated floor space with appropriate safety clearances from adjacent equipment and walls.

Documentation & Quality Records

• Mill certificate for frame steel with traceable coil origin
• CE conformity declaration covering electrical and mechanical safety
• RoHS compliance documentation for electronic components
• Unit-specific load test record covering folding mechanism and running deck
• Three-stage QC inspection report from assembly through final packaging
• Installation manual with exploded parts diagram and torque specifications

Installation, Layout & Maintenance

• Verify unfolded footprint of 1250 x 590 mm plus minimum 500 mm rear clearance for safe dismount
• Confirm floor surface is level and capable of supporting 100–160 kg dynamic load without vibration transfer
• Inspect folding pivot pin and locking bracket for play after first 50 fold-unfold cycles
• Check drive roller bearings for noise or resistance; lubricate or replace per maintenance schedule
• Clean frame and handrails with non-abrasive pH-neutral cleaner to preserve 200μm powder coating
• Inspect running belt alignment and tension quarterly; adjust or replace per wear indicators

Requesting a Layout Proposal for Your Facility

Provide the available floor area and adjacent equipment list to receive a 2D-3D CAD layout showing placement of the compact folding walking treadmill with verified safety clearances. Specify expected daily usage hours so the structural configuration can be matched to operational intensity. Indicate any customization requirements — frame color, facility logo placement, or upholstery preference — to confirm lead time and pricing.

Frequently Asked Questions

Q: How does the folding mechanism maintain rigidity during use?
A: The folding pivot uses a reinforced bracket with a steel locking pin that engages when the unit is deployed. This pin transfers running-deck loads directly to the main frame rather than relying on friction or latch pressure alone. Over repeated cycles, the pin-and-bracket design resists the play that causes handlebar wobble in simpler latch-only systems.

Q: What motor specifications indicate suitability for extended daily use?
A: Continuous-duty rating and thermal protection are the key indicators. A motor designed for sustained operation includes internal thermal cutoffs that prevent overheating during long sessions, while sealed bearing housings keep dust and moisture away from the rotation points. Adequate ventilation pathways around the motor compartment further reduce thermal buildup during back-to-back use.

Q: Can the running belt and deck be replaced after extended use?
A: Yes. The running belt and shock-absorbing deck are replaceable wear components. Replacement intervals depend on usage frequency and user weight, but the availability of OEM replacement parts ensures the unit can be maintained rather than retired when the belt surface shows wear or the deck loses cushioning resilience.

Q: What floor conditions are required for stable operation?
A: The floor must be level within the adjustable foot range and structurally capable of supporting the unit weight plus dynamic user load without deflection. Hard surfaces such as concrete or commercial-grade rubber flooring provide the most stable base. Carpeted or uneven surfaces may transmit vibration and affect belt tracking over time.
