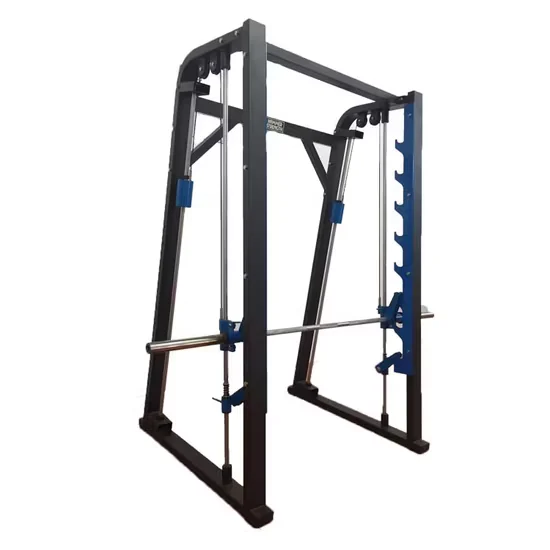

Commercial Smith Machine OS-H5045 for Gym

Verified Steel Traceability — Every tube used in the OS-H5045 traces back to a mill-certified Q235 or Q345 coil, eliminating the vague "commercial grade" claims that leave buyers guessing what is actually inside the frame.

Technical Specifications

Application Suitability

What Separates a Smith Machine Frame That Holds Up From One That Cracks

Continuous robotic MIG welds carry the load where spot welds surrender.

The OS-H5045 is built around a steel frame designed to handle the repeated eccentric and concentric loading cycles that define daily commercial use. Many facilities have watched guide rods bind and frames develop hairline fractures at junction points because the underlying welding method was never matched to the stress profile of a barbell traveling under load. When a smith machine sees hundreds of reps per day from lifters of varying sizes, the joint integrity becomes the single most important structural variable. Spot-welded connections may pass a visual inspection on day one, but under off-center loading and fatigue cycles, they become the first failure point [NEED_CITE: weld classification and fatigue performance in structural steel]. The continuous weld approach on this commercial smith machine OS-H5045 removes those weak points by distributing stress along the full seam rather than concentrating it at discrete spots.

Positioning the OS-H5045 Within a Strength Zone Layout

This unit covers the vertical pressing and squatting movement planes, targeting the quadriceps, glutes, pectorals, and deltoids through a fixed barbell path. In a commercial strength floor configuration, it pairs naturally with free weight racks for experienced lifters and selectorized machines for those who prefer independent movement patterns. The footprint of 1340×2266 mm allows it to sit against a wall or anchor a peninsula layout without consuming excessive floor area. The guided path makes it suitable for facilities that serve a broad range of member experience levels, from beginners learning barbell mechanics to advanced users performing controlled eccentric overloads.

Stress Patterns a Commercial Smith Machine Endures Daily

Every rep on a smith machine introduces a combination of static load from the barbell and dynamic impact from direction reversals at the top and bottom of the movement. Multiply that by dozens of users per day, and the fatigue cycles on the frame joints accumulate rapidly. The guide rod and bearing interface bears the brunt of off-center loading when a lifter shifts weight unevenly, which is where unsealed bearings develop play and begin to bind. Contact points — the barbell hooks, safety catches, and upholstery surfaces — experience concentrated abrasion and sweat exposure that degrades thin coatings and low-density cushioning over time [NEED_CITE: EN 957 structural requirements for stationary training equipment]. The powder coating and seal specifications on the OS-H5045 are selected to withstand these exact wear paths in high-traffic commercial environments.

Reading the Structural Specifications That Actually Matter

The frame steel gauge and tube dimensions define the deformation threshold before any amount of engineering refinement can compensate. A thicker-walled tube with a larger cross-section resists bending under load far more effectively than a thinner alternative, regardless of how the joints are finished. The welding method determines fatigue life: continuous MIG welds distribute stress across the entire seam, while spot welds create localized stress concentrations that accelerate crack propagation under cyclic loading. Sealed industrial bearings prevent sweat, chalk dust, and cleaning chemicals from penetrating the race, which is the primary cause of premature play in guide systems. The powder coating thickness directly governs how long the frame resists chipping at contact points and corrosion from environmental moisture.

The Hidden Cost of Cutting Structural Corners

Reducing frame wall thickness to save on material costs produces visible flex under heavy loads and accelerates fatigue failure at welded joints. Non-sealed bearings require frequent replacement and create an uneven barbell path that users notice within months. Low-density upholstery compresses permanently under daily use, forcing facility operators into a cycle of cushion replacements that adds up quickly. Thin powder coating chips at the barbell hook contact points and safety catch interfaces, exposing bare steel to sweat and humidity that triggers surface corrosion. Non-standard hardware and proprietary fasteners mean that when a component eventually wears, there is no replacement available — and the entire unit becomes a liability [NEED_CITE: lifecycle cost analysis of commercial fitness equipment components].

Why the OS-H5045 Fits a Commercial Procurement Strategy

The 11-gauge steel frame with mill-certified traceability ensures that the tube specifications are verifiable, not marketing language. Robotic MIG welding produces continuous weld lines that eliminate the spot-weld failure points common in lighter-duty alternatives. Every unit undergoes load testing before shipment, so the structural performance is confirmed on the actual machine being delivered rather than assumed from a prototype. The 200μm industrial powder coating provides scratch and corrosion resistance rated for years of contact-point abrasion and chemical exposure. A 10-year frame warranty backs the structural investment. The 1340×2266×2384 mm footprint allows precise spacing calculations in 2D and 3D CAD floor plans, ensuring safe clearance around the barbell travel path. OEM customization for frame color, cushion color, and branding supports facility identity requirements.

Documentation & Quality Records

• Mill-certified steel grade documentation for Q235 and Q345 frame tubes
• ISO 9001 quality management system certificate
• CE conformity declaration for European market compliance
• Three-stage quality control inspection records per unit
• Individual load test report generated for each OS-H5045 before dispatch
• Facility layout CAD drawings with equipment spacing and safety clearances

Installation, Layout & Maintenance

• Confirm floor levelness across the 1340×2266 mm footprint before anchoring the frame
• Allow minimum clearance on all sides for safe barbell loading and unloading movement
• Torque all structural bolts to specification and schedule periodic re-tightening checks
• Inspect guide rod bearings and barbell hook mechanisms quarterly for wear or play
• Clean powder-coated surfaces with pH-neutral cleaner to preserve the 200μm coating
• Replace upholstery panels when surface compression affects user comfort or support

Configuring Your Strength Equipment Order

Provide your strength zone dimensions and current equipment list to receive a 2D or 3D floor plan showing the OS-H5045 positioned with proper safety clearances. Specify the expected daily user volume so the structural grade can be confirmed for your traffic level. Communicate any frame color, cushion color, or branding requirements to align the unit with your facility identity. Indicate the user demographic profile to verify that the adjustment range and barbell path suit the body types your members represent.

Frequently Asked Questions

Q: How do I tell a commercial-grade smith machine from a light-commercial one?
A: Request the specific steel gauge and tube dimensions rather than accepting vague "commercial grade" labels. Verify that the welding method is continuous MIG rather than spot welding at structural joints. Confirm that load testing is performed on every unit before shipment, not just on a sample batch. Check whether the bearings are sealed industrial grade and whether the powder coating thickness is specified in microns.

Q: What frame steel gauge is needed for heavy loading on a smith machine?
A: An 11-gauge steel frame with a 3×3 inch tube cross-section provides the rigidity required for repeated heavy barbell loading in commercial environments. Thinner gauges flex under load, which accelerates joint fatigue and compromises the barbell travel path. Always request mill-certified documentation that traces the steel back to the original coil for verification.

Q: How should I plan spacing and safety clearances around a smith machine?
A: The OS-H5045 footprint is 1340×2266 mm, and you must add clearance on all sides for plate loading, user movement, and emergency exit from the barbell path. Provide a minimum buffer zone between adjacent stations so that users do not interfere with each other during compound lifts. CAD-based floor planning ensures these clearances are calculated before equipment is installed.

Q: What warranty coverage should I expect on frame, bearings, and moving parts?
A: A commercial smith machine should carry a minimum 10-year frame warranty that covers structural failure under normal use. Bearing and moving part warranties vary by manufacturer, so confirm the specific coverage period and what constitutes a warranty claim versus normal wear. Verify whether replacement bearings and guide components are available as spare parts.

Q: How long does commercial upholstery typically last before needing replacement?
A: Under daily commercial use, standard-density cushioning typically compresses and splits within the first year. High-density upholstery extends this cycle significantly, but the exact lifespan depends on user volume and cleaning practices. Confirm that replacement cushion panels are available from the manufacturer and whether they can be swapped without specialized tools.
