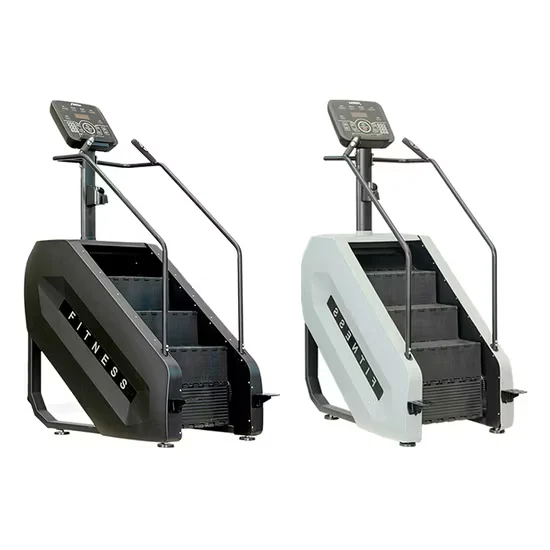

Commercial Stair Climbing Machine for Gyms – Reliable Motor-Driven Stepper

Motor-Driven Continuous Duty — Engineered with steel pipe frame construction and sealed bearing systems to sustain high-traffic commercial gym operation without step mechanism degradation.

Technical Specifications

Application Suitability

When Vague Steel Claims Meet Repetitive Stepping Loads

Many units marketed as a commercial stair climbing machine for gym use rely on unspecified steel pipe gauges and open bearing housings — components that develop measurable play and step wobble within months of continuous operation.

Structural rigidity under cyclic loading separates commercial-grade stepper platforms from light-commercial alternatives.

In high-traffic facilities, each stepping cycle applies alternating eccentric force through the step mechanism into the frame joints. When frame tubes lack verified wall thickness specifications, this repetitive stress accelerates fatigue at welded connections. Non-sealed bearings exposed to gym-floor dust and perspiration degrade rapidly, creating audible play and uneven step resistance. A commercial stair climbing machine for gym environments must address these failure modes at the specification level, not through marketing language. [NEED_CITE: structural fatigue performance of welded steel tube frames under cyclic loading]

Cardio Zone Positioning for Vertical Stepping

This motor-driven stair climber occupies the vertical-intensity segment of the commercial gym cardio floor, complementing treadmills and rowing ergometers by targeting lower-body muscular endurance through sustained stepping mechanics. The 180 kg user capacity and 560 × 235 mm step surface accommodate a broad range of body sizes, while the 15–164 steps/minute velocity range supports both warm-up paces and high-intensity interval protocols. Its 1450 × 820 mm footprint fits standard commercial gym cardio layouts with adequate safety clearance, making it a practical commercial stair climbing machine for gym operators managing dense floor plans.

Structural Stress Under Continuous Commercial Operation

Motor-driven stepping equipment endures a distinct stress profile compared to self-powered alternatives. The motor maintains consistent step velocity regardless of user load, meaning the frame and step mechanism absorb predictable cyclic forces across every session. Over hundreds of daily cycles, these forces concentrate at the step pivot points, frame-to-base junctions, and motor mount connections. Sealed bearings within the step assembly must resist contamination from gym-floor debris and moisture to prevent premature wear. The steel pipe frame must maintain dimensional stability without flex that could misalign the step track. Powder coating at contact zones must withstand repeated foot impact and cleaning chemical exposure without chipping. [NEED_CITE: bearing seal classification and contamination resistance in fitness equipment]

Reading the Structural Specifications

The steel pipe frame construction forms the load-bearing skeleton of this unit. Steel pipe diameter and wall thickness directly determine the frame’s resistance to deflection under the 180 kg maximum user weight — undersized tubes flex perceptibly during vigorous stepping, accelerating wear at connection points. The motor drive system replaces user-powered momentum with controlled mechanical input, requiring a frame rigid enough to absorb motor torque without harmonic vibration. Sealed bearings at the step pivot reduce maintenance frequency by preventing dust and moisture ingress — a critical specification for any commercial stair climbing machine for gym use where daily cleaning introduces contaminants. The 560 × 235 × 220 mm step dimensions provide a stable platform that minimizes lateral foot shift during extended sessions, reducing uneven load transfer to the step mechanism. The 200μm-class powder coating applied over sandblasted steel protects against corrosion from perspiration and facility cleaning agents.

The Hidden Cost of Structural Compromise

Facilities that select stepper equipment based on unit price alone often encounter frame flex at the base joints within the first year of heavy use. Thin-wall steel pipe deforms under repeated eccentric loading, creating step track misalignment that no adjustment can correct. Non-sealed bearings require frequent replacement, generating downtime and maintenance labor costs that exceed the initial savings. Low-density step surface materials compress permanently under commercial traffic, altering stepping mechanics and increasing user injury risk. When coating chips at frame contact points, exposed steel corrodes rapidly in humid gym environments, compromising both appearance and structural integrity. Non-standard fasteners and proprietary step mechanisms leave facilities without replacement parts when components wear. [NEED_CITE: powder coating adhesion standards and corrosion protection for fitness equipment]

Why Specify This Equipment for Your Facility

The steel pipe frame of this commercial stair climbing machine for gym use is constructed from mill-certified materials with traceable sourcing, ensuring consistent wall thickness and mechanical properties across production batches. Every unit undergoes individual load testing before shipment — not sample-based inspection — verifying structural integrity at the 180 kg rated capacity. The motor drive system and sealed bearing assembly are specified for continuous commercial duty cycles, reducing the maintenance burden on facility operations teams. With a 1450 × 820 mm footprint, this unit integrates into floor plans developed through 2D-3D CAD layout support, ensuring adequate safety clearances between adjacent equipment. Customization options for color and branding allow facility operators to maintain visual consistency across their cardio fleet.

Documentation & Quality Records

• Mill certification for steel pipe frame material with traceable coil origin
• CE conformity declaration for electrical and mechanical safety compliance
• Individual unit load test record verifying 180 kg capacity before shipment
• Three-stage quality inspection report covering frame, drive, and finish
• 2D-3D CAD floor layout drawing with equipment placement and clearance zones
• Installation manual with step mechanism adjustment and bearing maintenance procedures

Installation, Layout & Maintenance

• Allocate 1450 × 820 mm footprint plus minimum 600 mm rear clearance for motor access and ventilation
• Verify floor load capacity supports 148 kg static weight plus dynamic stepping forces
• Inspect sealed step pivot bearings quarterly for audible play or resistance changes
• Clean powder-coated frame surfaces with pH-neutral cleaners to preserve coating integrity
• Check motor drive belt tension and step track alignment at six-month service intervals
• Confirm all frame connection fasteners meet specified torque values after initial 30-day break-in period

Request a Layout and Specification Review

Provide your facility’s cardio zone dimensions and target daily user volume to receive a 2D-3D floor plan showing optimal placement of this commercial stair climbing machine for gym environments with appropriate safety clearances. Specify your expected peak-hour traffic to confirm motor duty cycle alignment with your operational demands. Indicate any customization requirements for frame color or facility branding to ensure visual integration with your existing equipment fleet.

Frequently Asked Questions

Q: How does a motor-driven stair climber differ from self-powered steppers in commercial settings?
A: Motor-driven units maintain consistent step velocity regardless of user weight or effort level, providing predictable training intensity and reducing mechanical stress variation on the frame. Self-powered models rely on user force to drive the step mechanism, which creates uneven loading patterns and requires heavier-duty bearings to handle variable torque. For high-traffic commercial gym environments, motor-driven systems offer more reliable performance across diverse user populations.

Q: What maintenance do sealed bearings require on a commercial stair climbing machine?
A: Sealed bearings in this stair climber are designed to resist dust and moisture ingress without routine lubrication. Facility maintenance staff should inspect bearings quarterly for unusual noise or resistance during step rotation. If bearing play develops, replacement cartridges are available through the parts program. Proper sealing extends service intervals significantly compared to open bearing designs exposed to gym-floor contaminants.

Q: What floor space and clearance does this stair climbing machine require?
A: The unit measures 1450 × 820 × 2080 mm in operating configuration. We recommend maintaining at least 600 mm of rear clearance for motor ventilation and service access, plus 900 mm on the entry side for safe mounting and dismounting. The unfolded design means no additional space is needed for deployment. Total recommended zone per unit is approximately 2.5 square meters including all safety clearances.

Q: Can the step mechanism components be replaced individually?
A: Step pedals, pivot bearings, and drive belt components are available as individual replacement parts rather than requiring full assembly replacement. This modular approach reduces maintenance costs and equipment downtime. Replacement intervals depend on facility traffic volume, but sealed bearing designs typically extend component life compared to open systems in commercial gym environments.
