Most buyers assume every model in a squat rack sub-series carries roughly the same load rating. The real dividing line sits inside the steel — tube wall thickness and welding grade separate a rack that survives a decade of commercial abuse from one that starts cracking J-hooks within a single quarter.

SR-Squat Rack sub-series are segmented by tube gauge, static load capacity, and attachment compatibility into distinct tiers — each engineered for a specific usage intensity, from light studio use to high-traffic commercial floors. Choosing the wrong tier does not mean a slightly shorter lifespan; it means structural failure under real-world programming.

I once crouched on the rubber flooring of a CrossFit box in Buenos Aires, inspecting a safety arm that had bent under repeated heavy drops. The gym owner had ordered the lightest configuration available — a home-grade tube spec repurposed for commercial class cycles. Within a single quarter, J-hooks showed visible stress fractures and the uprights developed micro-flex under loaded squats [NEED_CITE: fatigue failure patterns in thin-wall square tubing under cyclic loading]. That case reshaped how I walk every buyer through the SR-Squat Rack sub-series lineup. The differences between models are not cosmetic trim levels; they are load-bearing architecture.

Let me walk you through what actually separates these sub-series — and why getting the match right matters more than the invoice line item.

What Are the Key Differences Between SR-Squat Rack Sub-Series?

The sub-series split along three structural axes: tube wall thickness, maximum static load rating, and attachment ecosystem compatibility. Each axis maps to a real usage scenario, and ignoring any one of them creates a weak link in the chain.

Tube wall thickness is the most visible differentiator. Entry-level models use thinner gauge steel designed for controlled home environments where daily user count stays low and load cycling is predictable. Mid-tier models step up to a heavier gauge that absorbs repeated commercial loading without permanent deformation. Top-tier models deploy the thickest wall spec in the lineup, paired with reinforced gusseting at high-stress junctions [NEED_CITE: relationship between square tube wall thickness and resistance to buckling under eccentric loads].

Static load capacity follows directly from tube spec and welding methodology. A rack rated for heavier static loads does not simply mean it holds more weight on paper — it means the welded joints and mounting points have been validated under sustained stress conditions that mimic actual gym floor use.

Attachment compatibility is the third axis, and it catches many buyers off guard. Higher-tier sub-series accept a broader range of aftermarket and proprietary attachments — band pegs, monolifts, pivot arms, storage horns — because the hole spacing, tube dimensions, and load distribution points are engineered to accommodate them. A lower-tier rack may physically accept a plate storage horn, but the mounting zone was never designed to handle the lateral torque that a loaded horn introduces [NEED_CITE: attachment-induced lateral load effects on rack frame integrity].

A distributor in the Middle East once placed a bulk order of the light-duty tier for a chain of apartment fitness rooms. The units looked adequate on paper. But when residents began loading barbells beyond the intended range and performing high-volume drop sets, the uprights developed visible flex within months [NEED_CITE: deformation thresholds in light-gauge commercial rack frames under uncontrolled loading]. The retrofit cost — pulling units, replacing them, managing resident complaints — dwarfed the original price difference between tiers.

How Do Tube Thickness and Welding Grade Affect Real-World Durability?

Tube thickness and welding grade are the two parameters that determine whether a rack flexes, cracks, or holds steady under years of cyclic commercial loading. Marketing brochures rarely explain the relationship clearly, so let me break it down from the factory floor perspective.

Thicker tube walls resist buckling under compressive and eccentric loads. When a lifter racks a barbell slightly off-center — which happens constantly on a busy gym floor — the upright on the loaded side absorbs asymmetric force. Thin-wall tubing deforms progressively under this asymmetric cycling. Heavy-wall tubing distributes the stress across a larger cross-section, delaying the onset of permanent deformation [NEED_CITE: structural mechanics of square hollow sections under asymmetric compressive loading].

Welding grade matters just as much. A rack built with spot welds or intermittent fillet welds at the joint intersections creates discrete stress concentration points. Under repeated loading, cracks initiate at these points and propagate through the heat-affected zone. Full-penetration welding at critical joints — where uprights meet the base frame, where J-hook mounting plates attach to the upright — eliminates these weak nodes and distributes stress continuously along the joint [NEED_CITE: weld joint design and fatigue life in structural steel frames].

I have seen racks from the same sub-series family behave completely differently based on these two variables alone. One buyer received units where the J-hook mounting plates were attached with intermittent fillet welds. Under commercial-class loading volumes, the weld toes developed fatigue cracks. The same buyer later ordered the heavy-duty tier from the SR-Squat Rack lineup, where full-penetration welding was standard at every structural joint. The difference in field performance was immediate and measurable in service life extension.

Here is what this means in practical selection terms:

• For home or low-traffic studio use: Thin-wall tubing with standard welding is structurally adequate. Load cycling is low, and asymmetric racking events are infrequent.
• For moderate commercial traffic: Mid-wall tubing with continuous perimeter welding at primary joints. This tier handles daily loading from multiple users without progressive deformation.
• For high-traffic commercial and CrossFit environments: Heavy-wall tubing with full-penetration welding at all structural joints and gusseted high-stress zones. This is the only configuration that reliably withstands high-volume, high-load cyclic use [NEED_CITE: fatigue testing protocols for commercial strength equipment frames].

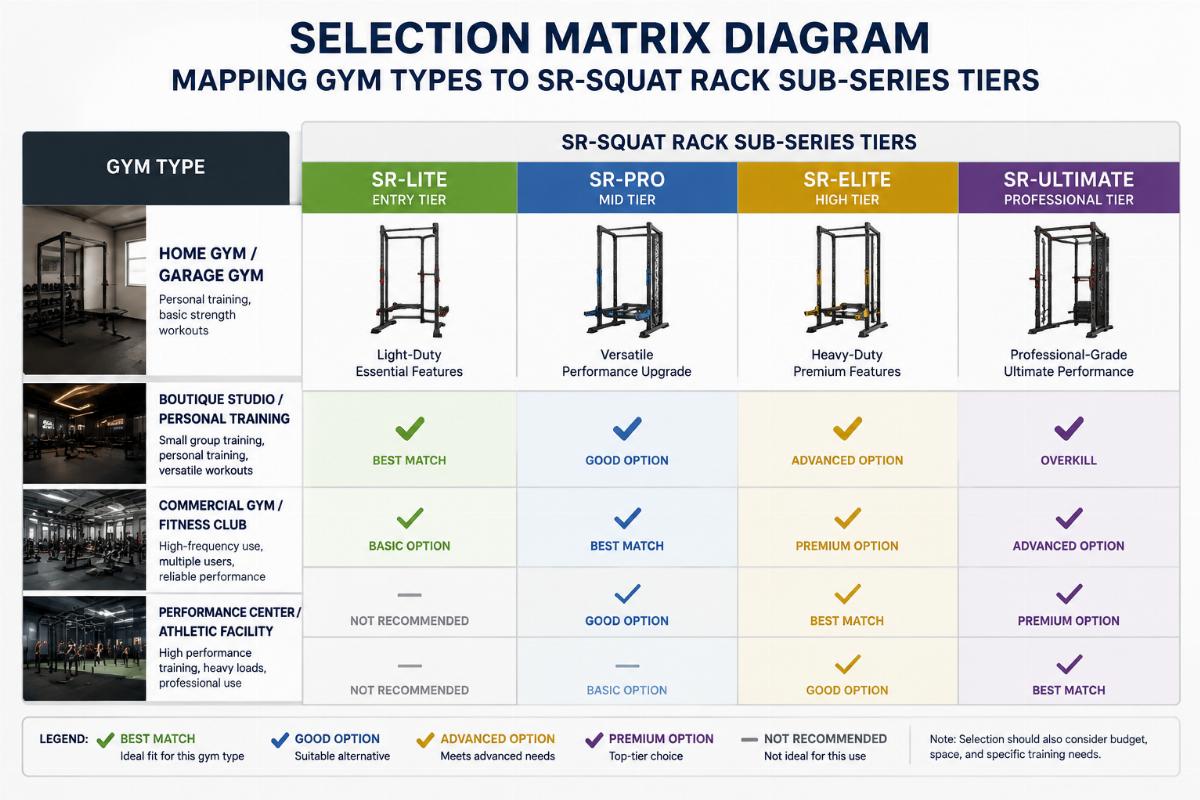

Which Sub-Series Fits Which Gym Type? A Selection Matrix

Matching the right SR-Squat Rack sub-series to a specific gym type requires evaluating three dimensions: daily user volume, maximum programmed load, and whether plate storage is structurally integrated or added aftermarket. Get these three inputs right, and the selection narrows quickly.

Let me lay out the matrix the way I use it in buyer conversations:

A fitness chain operator in Latin America once divided a new facility into zones — a general strength floor and a dedicated powerlifting area. The general floor received the commercial tier, which handled the daily traffic of moderate-load users without issue. The powerlifting zone received the heavy-duty tier, where lifters routinely worked at near-maximal loads and performed high-volume eccentric drops. Two years in, the general floor units showed no structural concerns, and the powerlifting zone units remained solid under sustained heavy use [NEED_CITE: zone-based equipment specification methodology for multi-use commercial gyms].

The plate storage point deserves specific attention. Integrated plate storage horns are engineered into the rack frame during manufacturing — the mounting zones are reinforced, the load path is calculated, and the center of gravity shift is accounted for. Aftermarket horns bolted onto a rack not designed for them introduce uncalculated lateral torque. Over time, this torque causes upright lean, joint stress, and in severe cases, base frame distortion. If your programming includes significant plate storage on the rack itself, the sub-series must be rated for integrated storage from the factory [NEED_CITE: structural implications of aftermarket plate storage attachments on rack frames].

What Happens When You Under-Spec a Rack for Commercial Use?

Under-specifying a squat rack for commercial use does not produce a gradual performance decline — it produces sudden, specific failures that create safety hazards, warranty disputes, and replacement costs that far exceed the original price gap between tiers.

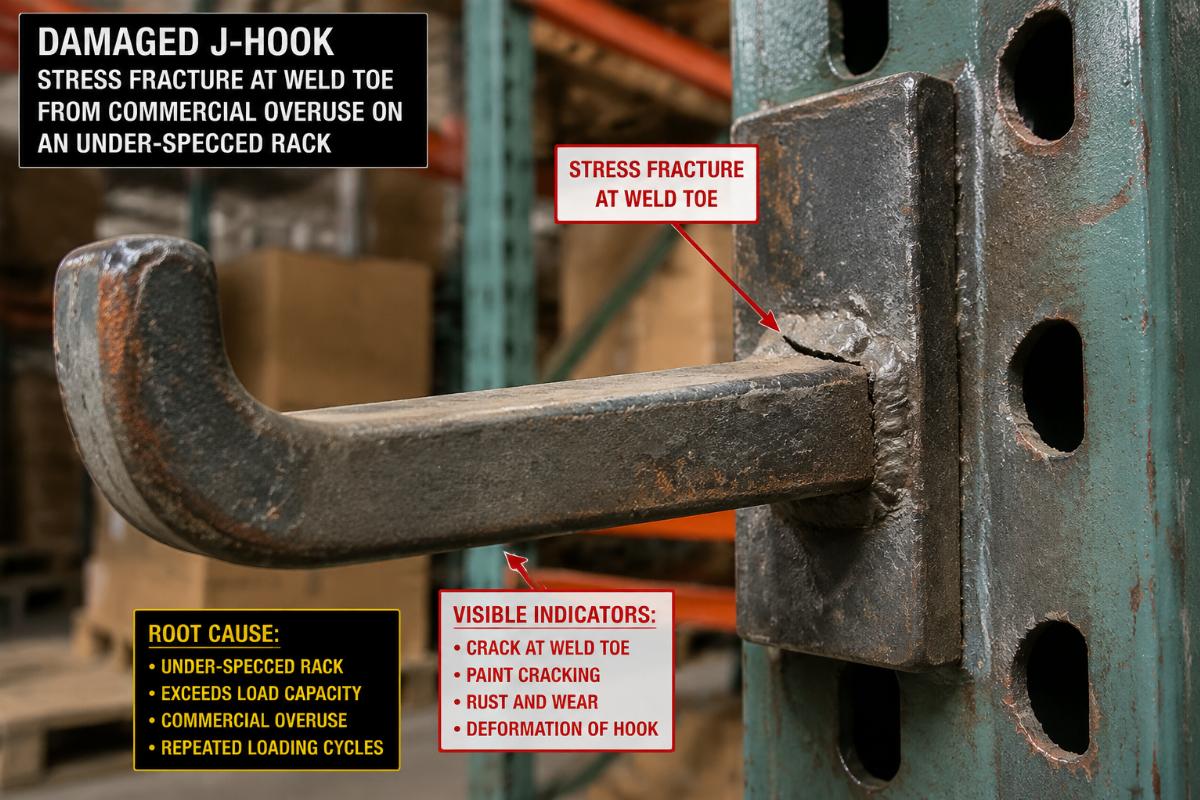

The most common failure sequence I have documented follows a predictable pattern. J-hooks are the first component to show distress. Under commercial loading volumes with heavier gauge plates, the hook contact points experience repeated impact stress. In an under-specced rack, the J-hook mounting plate is thinner, the weld attachment is lighter, and the hook material itself may be a lower grade. Cracks appear at the weld toe. The hook deforms under load. In the worst cases, the hook fails catastrophically during a re-rack, dropping the barbell and endangering the lifter [NEED_CITE: J-hook failure modes under cyclic commercial loading conditions].

Safety arms are the next failure point. In a properly specced rack, safety arms are designed to absorb the energy of a dropped barbell at a given load range. In an under-specced rack, the safety arm tube is thinner, the pin-locking mechanism is lighter, and the mounting holes in the upright are not reinforced. Repeated drops cause the safety arm to bend, the pin to deform, and the upright hole to elongate — rendering the safety system unreliable.

The Buenos Aires case I opened with is the textbook example. The owner selected the lowest-cost configuration to minimize upfront expenditure. The rack was installed in a high-traffic CrossFit environment where multiple athletes loaded heavy barbells throughout the day. J-hook cracking appeared within a single quarter. Safety arms showed visible bending. The owner faced a choice: absorb the cost of full replacement, or attempt warranty claims that the manufacturer would not honor because the usage profile exceeded the rated specification [NEED_CITE: warranty claim denial patterns in misapplied commercial fitness equipment].

The financial logic is straightforward. The price difference between a light-duty tier and a heavy-duty tier in the SR-Squat Rack lineup is a fraction of the total cost of pulling failed units, shipping replacements, managing downtime, and handling liability exposure. Buyers who optimize purely on initial unit cost routinely incur total ownership costs that are substantially higher than buyers who spec correctly from the start.

How to Verify Load Ratings and Request the Right Documentation?

Before placing a bulk order on any SR-Squat Rack sub-series, buyers must request and review specific technical documentation — not marketing summaries — to confirm that the rated specifications match the structural reality of the product.

The first document to request is the static load test report. This report should specify the test method, the load applied, the duration of the test, and the acceptance criteria. A credible test report references a recognized standard or methodology and provides enough detail for an independent engineer to evaluate the validity of the result [NEED_CITE: documentation requirements for verifying static load ratings in commercial strength equipment].

The second document is the welding procedure specification or a summary of welding methods used at critical joints. This tells you whether the rack uses spot welds, intermittent fillet welds, continuous welds, or full-penetration welds at the structural junctions. If the supplier cannot provide this information or dismisses the request, that is a significant red flag.

The third document is the material certification for the steel tubing — specifically the grade, wall thickness, and dimensional tolerances. This confirms that the tube spec matches what is claimed in the product literature.

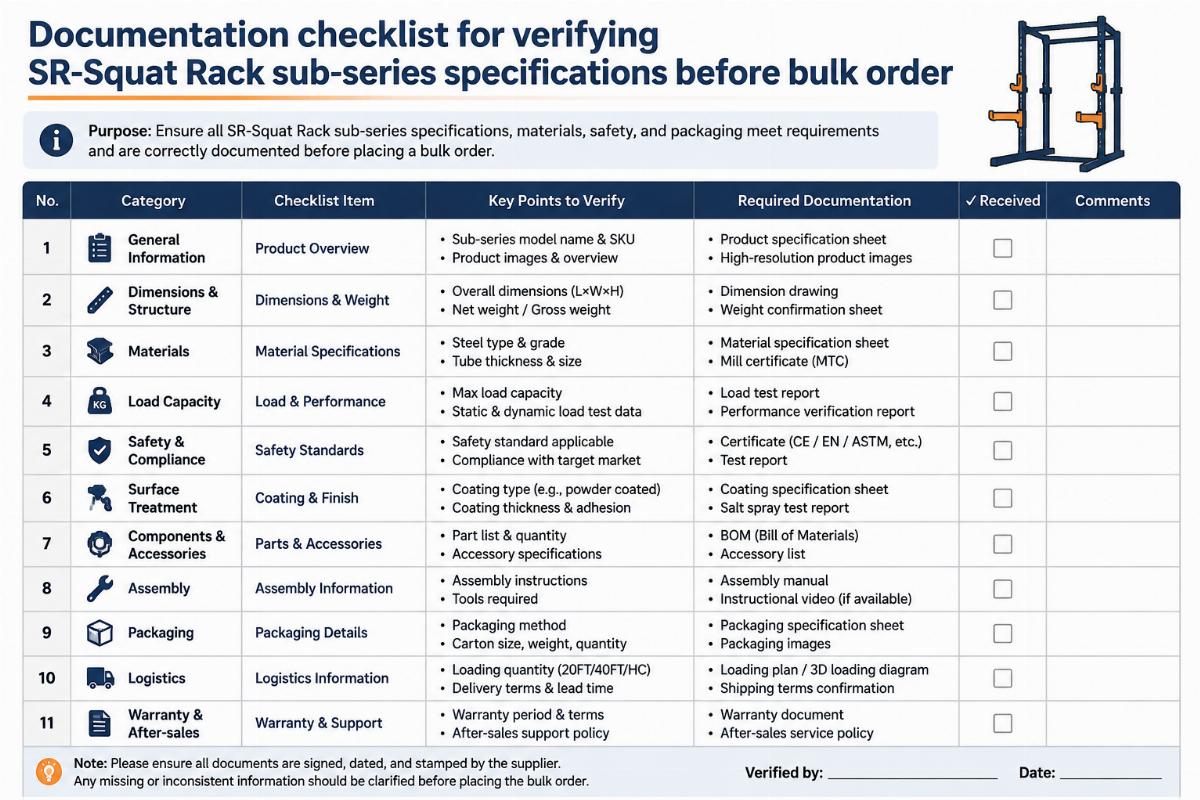

When I work with distributors preparing container-load orders, I walk them through a verification checklist:

1. Request the static load test report — confirm the test method and acceptance criteria are referenced to a recognized standard.
2. Request welding procedure documentation — confirm full-penetration or continuous welding at structural joints for commercial-tier and above.
3. Request material certification for tubing — confirm gauge, grade, and tolerance match published specs.
4. Request attachment compatibility documentation — confirm which attachments are factory-rated for the specific sub-series and which are not.
5. Request warranty terms tied to usage classification — confirm that the warranty is valid for the intended usage environment, not just a generic coverage period.

A distributor in Southeast Asia once received a shipment where the published load rating did not match the physical tube gauge on the delivered units. The material certification revealed a thinner wall than specified. Without the documentation review step, this discrepancy would have been discovered only after installation and field failure. The SR-Squat Rack sub-series from our production line ships with complete documentation packages because the specifications are consistent across production runs — but the buyer must still request and review the documents as a standard procurement discipline [NEED_CITE: procurement documentation audit practices for imported commercial fitness equipment].

Conclusion

The SR-Squat Rack sub-series are engineered for distinct usage intensities, and selecting the correct tier is a structural decision — not a budgetary compromise. Tube wall thickness, welding grade, and attachment compatibility define the performance boundary of each model. Under-specifying creates predictable failure modes that cost substantially more than the initial tier price difference. Buyers who request and verify technical documentation before ordering protect their investment, their end users, and their reputation in the market.
