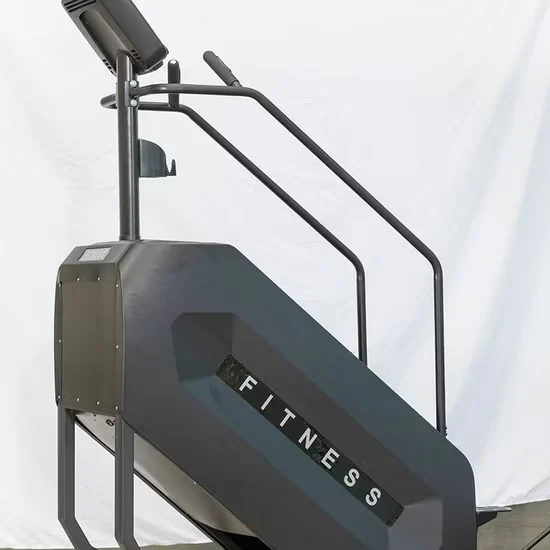

Commercial Stair Machine for Athletic Training

Motor-Driven Stability — The 148 kg net weight and steel pipe frame eliminate vibration during sustained 164 steps/min sessions, requiring no floor anchoring.

Technical Specifications

Application Suitability

When Drive Components Lose Tolerance Before the Frame Does

Motor-drive engagement and step mechanism alignment determine long-term smoothness, not just frame thickness.

Many units marketed as commercial stair climbers rely on belt-driven or self-powered mechanisms that develop slack and noise within months of daily gym use. The motor-drive system in this commercial stair climbing machine for athletic training maintains consistent step cadence across the full 15–164 steps/min range without mechanical clutch wear. [NEED_CITE: drive system duty cycle classification for continuous-use fitness equipment]

Positioning Within the Conditioning Floor

This climbing stepper occupies the intersection of cardiovascular endurance and lower-body muscular stamina, targeting the quadriceps, glutes, and calves through a full stepping range. The 560 × 235 × 220 mm step area allows full-foot contact, keeping the movement path aligned with natural joint travel. In a commercial stair climbing machine for athletic training configuration, it pairs with rowers and air bikes to create a multi-modal conditioning circuit. The 148 kg mass and unfolded assembly state mean it stays planted during peak-hour use without anchoring, making it suitable for high-density gym floors where equipment relocation is infrequent.

Structural Stress Under Repeated Loading

A stair stepper endures a distinct loading profile: continuous eccentric force on each step cycle, combined with lateral sway from alternating foot strikes. The steel pipe frame resists torsional flex that thinner-gauge alternatives cannot, particularly at the 164 steps/min upper range where harmonic vibration accumulates. The motor-drive system absorbs shock loads that would otherwise transfer directly to bearing housings. Over thousands of daily cycles, the step mechanism pivot points and drive chain engagement surfaces experience wear that unsealed designs accelerate through dust and sweat infiltration. [NEED_CITE: bearing seal classification and contamination resistance in fitness equipment] The PP plastic step covers and steel pipe junctions must withstand repeated impact without cracking at stress concentration points.

Reading the Structural Specifications

The steel pipe frame construction provides torsional rigidity that prevents the lateral sway riders feel on lighter-gauge machines. At 148 kg net weight, the unit achieves structural mass sufficient to dampen vibration without bolting to the floor — a threshold that thin-tube frames cannot reach. The motor-drive system with a 15–164 steps/min range eliminates the mechanical clutch found in self-powered models, removing a wear point that degrades step cadence consistency over time. The 560 × 235 × 220 mm step dimensions exceed narrow-pedal designs, distributing load across the full foot and reducing concentrated stress on step pivot bearings. The integrated OSD display — tracking time, calories, steps, and heart rate — removes dependency on external wearables for athlete monitoring during structured sessions.

The Hidden Cost of Under-Specified Drive Systems

When manufacturers substitute thin-wall tubing and unsealed drive components to hit a price point, the consequences emerge within the first year of commercial operation. Step mechanisms develop play that creates audible clunking and uneven cadence — complaints that drive member attrition in high-traffic facilities. Non-sealed bearings in the step pivot and drive assembly accumulate contamination from gym floor dust and cleaning chemicals, accelerating wear and requiring premature replacement. Frames that flex under sustained stepping loads transfer vibration to the OSD console mounting points, causing display fatigue and connector loosening. [NEED_CITE: vibration transmission and fastener loosening in cyclically loaded structures] The result is a machine that functions adequately on day one but generates maintenance tickets and member complaints by month six.

Why Specify This Unit for Your Facility

The steel pipe frame and motor-drive configuration are engineered for the sustained duty cycles of commercial gymnasium environments. The 1450 × 820 mm footprint allows precise floor planning with safe clearance zones around the unit, and 2D-3D CAD layout support ensures the commercial stair climbing machine for athletic training integrates into your conditioning floor without creating unsafe traffic gaps. The CE certification and three-stage QC protocol — including load testing on every unit before shipment — provide documentation for institutional procurement requirements. The unfolded assembly state means the unit arrives ready for placement, reducing on-site labor and installation scheduling delays.

Documentation & Quality Records

• Steel pipe material certification traceable to mill origin
• CE conformity declaration for European market placement
• Three-stage QC inspection record per unit shipped
• Per-unit load test report covering motor-drive and step mechanism
• 2D-3D CAD floor layout with clearance dimensions
• Installation manual with step mechanism maintenance schedule

Installation, Layout & Maintenance

• Allocate clearance around the 1450 × 820 × 2080 mm footprint for safe mounting and dismount access
• Verify floor load capacity supports the 148 kg static weight plus dynamic user load
• Confirm AC220V or AC110V mains supply matches the facility electrical standard before placement
• Inspect motor-drive engagement and step pivot bearings at regular service intervals
• Clean steel pipe frame and PP step covers with non-abrasive agents to preserve surface finish

Requesting a Configuration Quote

Provide your facility floor area and target equipment list to receive a 2D-3D CAD layout showing safe clearance around each commercial stair climbing machine for athletic training unit. Specify expected daily usage hours so the motor-drive duty cycle can be matched to your operational intensity. Indicate any customization requirements for frame finish color or OSD display branding to align with your facility identity.

Frequently Asked Questions

Q: How do motor-drive stair climbers differ from self-powered models in a commercial setting?
A: Motor-drive systems maintain consistent step cadence across the full speed range without relying on user weight to activate the belt. This eliminates the mechanical clutch wear that self-powered units experience under continuous daily use. The trade-off is a mains power requirement, but the operational smoothness and component longevity justify the electrical connection in high-traffic gym environments.

Q: What frame construction is needed for a stair stepper to withstand daily gym use?
A: The frame must resist torsional flex from alternating foot strikes and sustained vibration at high step rates. Steel pipe construction with sufficient wall thickness and junction reinforcement prevents the lateral sway that lighter-gauge frames develop. The 148 kg net weight of this unit reflects the structural mass needed to remain stable without floor anchoring during extended commercial operation.

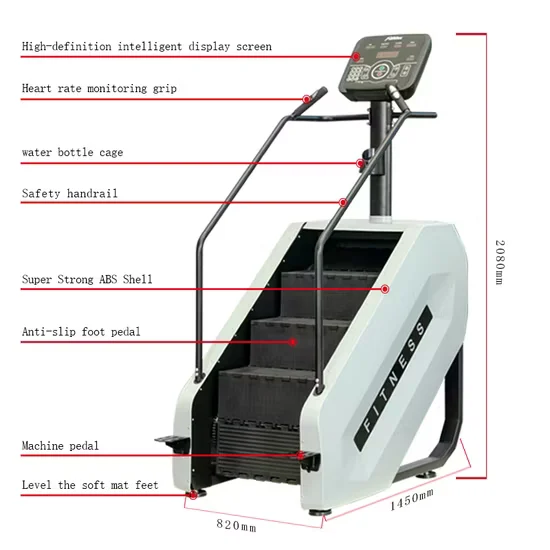

Q: What floor space and clearance does this stair stepper require?
A: The unit measures 1450 × 820 × 2080 mm in the unfolded state. Safe installation requires additional clearance on all sides for users to mount and dismount without obstruction. A CAD floor layout accounts for traffic flow patterns and adjacent equipment spacing to prevent unsafe congestion around the stepping zone.

Q: What maintenance does the motor-drive and step mechanism require over time?
A: The motor-drive system and step pivot bearings should be inspected at regular service intervals for wear and contamination. The sealed design reduces but does not eliminate the need for periodic checking, particularly in environments with high dust or cleaning chemical exposure. Step surface condition and OSD console connections should also be verified during scheduled maintenance visits.
