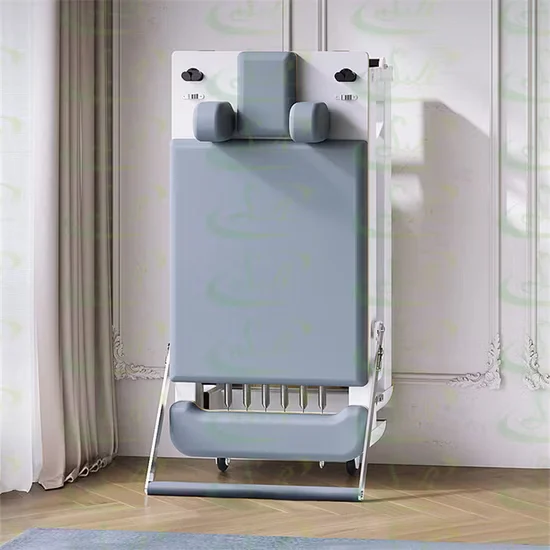

Folding Portable Pilates Reformer Machine for Home Use

Mill-Traceable Steel Frame — every folding portable Pilates reformer machine tube is sourced from certified Q235 coil with full mill documentation.

Technical Specifications

Application Suitability

What Happens When a Folding Hinge Meets Full Spring Tension

Carriage alignment after every fold-unfold cycle determines whether the reformer glides or binds.

Many portable reformers on the market use thin-gauge rectangular tubing joined with basic spot welds at the hinge plate. Under maximum spring load, the frame flexes just enough to pull the carriage rail out of true, and the wheels begin to scrub instead of roll. Within months the rail surface wears unevenly, and the reformer develops a rough, noisy stroke that no amount of lubrication fixes [NEED_CITE: structural deflection limits for light-gauge steel frames under cyclic load]. I have seen this exact failure pattern on reformers that looked fine on the showroom floor but could not survive a high-frequency studio schedule.

Where the Reformer Sits in a Pilates or Rehab Floor Plan

A folding portable Pilates reformer machine covers the full spectrum of supine, prone, seated, and standing Pilates movements, targeting core stabilizers, hip flexors and extensors, and shoulder girdle musculature. In a studio layout it pairs with a Cadillac or tower unit for advanced repertoire, and with mat zones for warm-up and cool-down flow. It fits boutique studios running four to six classes per day and home environments where the unit must clear the floor after each session. The 2400 mm bed length accommodates users across a wide height range without requiring an oversized footprint.

Cyclic Stress on the Folding Joint and Carriage Rail

Every stroke loads the carriage rail in bending, and every fold-unfold cycle adds a separate fatigue event at the hinge mechanism. In a studio running group classes, the reformer may see dozens of full spring-tension cycles per day, compounding micro-movement at the locking pin and hinge plate. The wheel-to-rail interface bears the highest contact stress; if the wheels use unsealed bushings, sweat and chalk dust infiltrate within weeks, creating drag and audible grinding. Upholstery on the carriage and shoulder rests endures repeated compression and shear from body weight shifts, and low-density foam will bottom out long before the frame shows wear [NEED_CITE: foam compression set under cyclic loading in fitness upholstery].

Decoding the Structural Specs That Actually Matter

Frame tube gauge and wall thickness set the deflection threshold of the rail under maximum combined spring resistance — a thinner tube will bow, pulling the carriage off its intended travel path. The folding mechanism needs a positive locking pin rather than a friction catch to guarantee repeatable rail alignment after each setup. Wheel material and bearing type define glide consistency: sealed bearings resist contamination far better than plain bushings in environments where talcum powder and cleaning agents are in constant use. Spring grading — typically a set of light, medium, and heavy resistance springs — must match the hook attachment points so that neither the spring eye nor the anchor plate deforms after repeated stretch cycles.

The Hidden Cost of Cutting Frame and Hardware Corners

A reformer built with undersized tubing saves weight and material cost up front but transfers that cost to the operator in the form of rail realignment, wheel replacement, and eventually frame fatigue cracks near the hinge plate. Non-sealed bushings demand a maintenance schedule that most home users and small studios will not follow, leading to premature carriage drag. Low-density carriage padding compresses permanently within months of daily use, forcing an upholstery replacement that costs more than specifying higher-density foam at the outset. Non-standard fastener sizes mean that when a bolt strips or a hinge pin wears, no off-the-shelf replacement exists [NEED_CITE: fastener standardization and long-term parts availability in fitness equipment].

Why Spec This Reformer for Your Facility

The frame uses mill-certified steel with traceable coil documentation, so you know exactly what is carrying the load. Robotic MIG welding produces continuous weld lines at the hinge plates and rail joints, eliminating the spot-weld weak points that crack under cyclic spring tension. Every unit undergoes a load test before shipment, verifying carriage glide under full spring resistance and hinge alignment after fold cycles. The 200 μm powder coating resists chipping at high-contact areas like the foot bar and spring anchors. A three-year warranty covers frame, springs, and carriage components. For studio operators, the 2400 × 600 mm footprint and folding capability allow flexible room layouts, and OEM logo customization keeps branding consistent across a multi-unit purchase.

Documentation & Quality Records

• Mill certificate for frame steel coil with grade and heat number traceability
• ISO 9001 quality management system certificate
• CE conformity declaration for European market entry
• SGS factory audit report verifying production and QC processes
• Individual load test record for each reformer before dispatch
• Installation manual with torque specs and spare parts list

Installation, Layout & Maintenance

• Allow at least 600 mm clearance on each side for safe carriage access and spring changes
• Verify floor levelness within tolerance before placement to prevent rail twist under load
• Inspect folding hinge locking pin and re-torque pivot bolts after the first month of use
• Wipe carriage rails and wheel surfaces weekly to remove talcum powder and sweat residue
• Check spring hooks for deformation quarterly and replace any spring showing permanent elongation
• Clean powder-coated surfaces with pH-neutral cleaner to preserve coating integrity

Planning Your Reformer Order

Provide your studio floor dimensions and class schedule so we can map reformer count and spacing in a 2D-3D layout. Specify expected daily user volume to confirm the structural grade matches your traffic. Indicate your target user height and weight range to verify the bed length and spring resistance set cover the full repertoire. Share any color, logo, or upholstery preferences for OEM customization.

Frequently Asked Questions

Q: How do I evaluate frame rigidity on a folding Pilates reformer before purchase?
A: Request the frame tube gauge and wall thickness from the manufacturer, then ask for a load-deflection test result at maximum spring resistance. A rigid frame will show minimal rail bow under full load. Check whether the folding hinge uses a positive locking pin rather than a friction latch — positive locking maintains rail alignment across repeated fold-unfold cycles, which is critical for consistent carriage glide.

Q: What carriage wheel and rail specs ensure a smooth, quiet glide over time?
A: Look for sealed bearings rather than plain bushings in the carriage wheels, as sealed units resist contamination from talcum powder, sweat, and cleaning agents. Rail straightness tolerance and surface finish determine whether the wheel rolls cleanly or develops scrub wear. Ask the manufacturer for the rail hardness specification and recommended lubrication interval to project long-term maintenance requirements.

Q: Folding versus fixed-frame reformer — what are the real trade-offs?
A: A fixed-frame reformer eliminates hinge-related alignment variables and generally delivers the most consistent carriage travel, making it the default choice for dedicated studio floors. A folding portable Pilates reformer machine trades a small amount of absolute rigidity for the ability to reclaim floor space between sessions, which matters in home environments and multi-use clinic rooms. The key is ensuring the folding mechanism locks positively so that rail alignment repeats every time.

Q: How should I think about spring resistance grading and replacement?
A: A well-graded spring set covers light to heavy resistance so that users can progress without needing additional springs. Check whether the hook attachment points are rated for the maximum spring force in the set, because an under-rated anchor will deform over time. Ask the manufacturer for the recommended replacement cycle based on stretch cycles, and keep a small inventory of replacement springs to avoid downtime.

Q: What upholstery material and padding density hold up under daily studio use?
A: High-density closed-cell foam resists compression set far longer than standard open-cell padding, which tends to bottom out within months of group-class use. The cover material should be a commercial-grade vinyl or synthetic leather rated for repeated cleaning with disinfectants. Confirm that replacement upholstery panels are available as spare parts so you can refresh the carriage and shoulder rests without replacing the entire reformer.
