How College Weight Rooms Buyers Deploy Low Row Machine from Wholesale Supplier

Most buyers fixate on stack weight. The real dealbreaker is ceiling clearance.

College weight rooms deploying a Low Row Machine must prioritize ceiling clearance, track stroke, and user height allowance over stack range—otherwise you get range-of-motion restrictions, user complaints, or a full batch return. The first move is not choosing poundage; it is pulling out a tape measure and checking overhead space against the machine’s rail travel envelope.

I learned this the hard way on a hotel fitness project in Surabaya. The client wanted seated low row stations, and I spec’d a plate-loaded unit based on stack capacity. The room height was barely two-point-six meters. Once the full weight stack was installed, users doing peak contraction knocked their elbows against the ceiling. Every unit had to be pulled, re-rail-ed, and shipped back. The freight alone wiped out the margin on half a container. Since then, before I look at any Low Row Machine spec sheet, I check ceiling height, rail travel, and the P95 seated arm reach of the expected user base. Southeast Asian college gyms tend to have lower ceilings, and Vietnamese projects love double-height atriums that look spacious but lose a significant chunk to decorative soffits, HVAC ducts, and pendant lighting. These are the traps that cost real money. [NEED_CITE: ceiling clearance requirements for overhead-pull strength equipment per international fitness facility design standards]

Let me walk you through how this plays out in real campus deployments.

Why Ceiling Clearance Is the First Thing to Check Before Buying a Low Row Machine?

The single most overlooked specification in campus gym procurement is not the weight stack—it is the vertical envelope from seat bottom to rail top.

When a university sports center orders a Low Row Machine, the purchasing committee usually compares stack weights, frame gauges, and upholstery grades. What they rarely discuss is whether a tall user sitting at the lowest seat position can achieve full peak contraction without the cable carriage or their own elbows hitting the overhead structure. In high-traffic college gyms, the user population spans a wide anthropometric range, and the P95 seated arm reach of male athletes can easily exceed what a compact frame accommodates if the ceiling is tight. [NEED_CITE: anthropometric seated arm reach data for P95 male population in fitness facility planning]

I once reviewed a campus gym layout in Mindanao where the architect specified a generous floor plate but the structural beams dropped lower than the finished ceiling suggested. The Low Row Machine looked fine on paper. On site, the rail top sat uncomfortably close to the beam, and a user above a certain height simply could not complete the stroke. The fix was not swapping the machine—it was repositioning the entire strength zone to a bay with higher clear height. That single decision reshaped the floor plan.

The takeaway is straightforward: ceiling clearance is a binary constraint. You either have it or you do not. No amount of stack weight or pad thickness compensates for a rail that runs out of travel two hundred millimeters short of full contraction.

How to Calculate the Minimum Ceiling Height for a Low Row Machine in a College Gym?

Use a simple clearance formula: ceiling height minus equipment frame height minus rail-top safety margin must equal or exceed the P95 seated arm reach of your user population.

This is not a suggestion; it is the only math that matters for overhead-pull equipment in a constrained room. Here is how the logic flows in practice:

• Measure the finished floor-to-ceiling height at the exact installation point, not the architectural section drawing. Decorative ceilings, exposed ductwork, and pendant lights routinely consume a meaningful portion of the nominal room height. [NEED_CITE: difference between architectural ceiling height and usable clear height in commercial fitness facilities]
• Obtain the equipment frame height from the manufacturer’s installation drawing, measured to the highest fixed structural point of the Low Row Machine, not the aesthetic top cap.
• Subtract a safety margin above the rail carriage at full top position. This margin accounts for carriage hardware, cable attachment points, and dynamic bounce during aggressive reps.
• Compare the remaining vertical space against the P95 seated arm reach. If the remaining space is less than that reach, the machine will restrict range of motion for the tallest users.

At a university sports center in southern Philippines, the procurement team used exactly this sequence. They measured actual clear height after the HVAC contractor finished duct routing, pulled the frame height from our installation package, and confirmed the rail travel covered the P95 arm reach with margin to spare. The batch passed acceptance inspection on first submission. No rework, no return freight, no angry emails from the athletic director.

The reverse is also instructive. A Vietnamese college project specified a double-height atrium that looked magnificent in renderings. Once the decorative soffit, track lighting, and suspended signage were installed, the usable clearance dropped noticeably. The Low Row Machine rail top ended up too close to the overhead obstructions. The lesson: never trust nominal ceiling height. Always measure after MEP and finishes are complete.

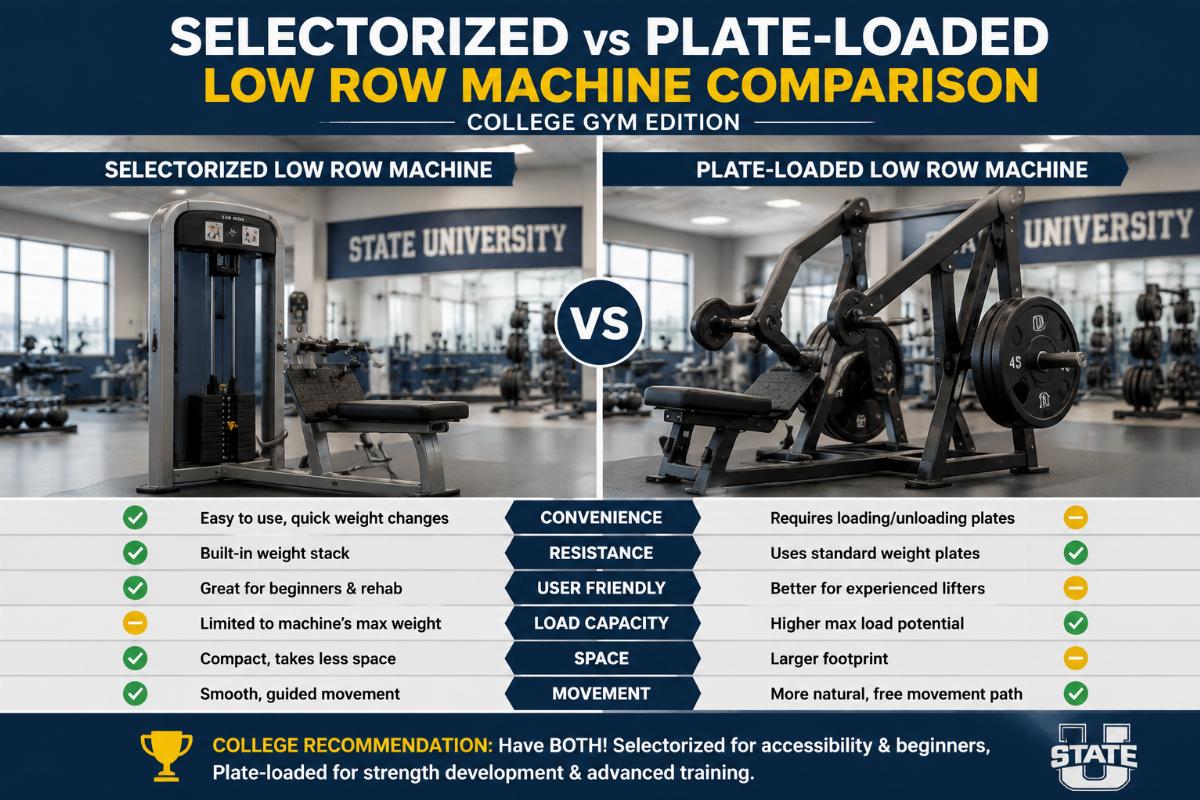

Selectorized vs Plate-Loaded Low Row: Which Fits College Weight Rooms Better?

Selectorized Low Row Machine units offer a more compact vertical profile and friendlier ceiling clearance, making them the default choice for high-traffic, multi-user college gym environments.

This is where the plate-loaded versus selectorized debate gets interesting in a campus context. Most people assume plate-loaded machines save space because they lack an enclosed weight stack housing. The reality is the opposite: the weight stack guide rods, horn posts, and plate storage pegs on a plate-loaded Low Row Machine push the overall frame height higher than a comparably rated selectorized unit. In a room with tight ceiling clearance, that extra frame height is the difference between a clean install and a return-to-factory modification.

[NEED_CITE: comparative frame height between selectorized and plate-loaded strength equipment of equivalent resistance class]

A Southeast Asian university hotel fitness project illustrates the point. The original spec called for plate-loaded low rows based on a coach’s preference for "real plates." The ceiling was tight. We ran the clearance calculation and found the plate-loaded frame would leave insufficient rail travel for taller users. Switching to a selectorized Low Row Machine with a compact enclosed frame solved the clearance issue without sacrificing resistance range. User turnover during peak hours also improved noticeably, because students could change resistance in seconds instead of hauling plates.

From a sourcing perspective, this is where working directly with a manufacturer that produces both configurations matters. Bick manufactures selectorized and plate-loaded strength equipment in the same production facility, which means a college gym buyer can spec the right configuration for each zone without juggling multiple suppliers. Our selectorized Low Row Machine lines carry CE certification, and we support full OEM and ODM branding for institutions that want campus-specific color schemes or logo placement. The factory-direct pricing model sits substantially below the tier-one international brands, which matters when a university is equipping multiple buildings in a single capital cycle. We also handle container-load consolidation, so a campus can bundle cardio, strength, and free weights in one shipment rather than coordinating partial containers from different vendors.

What Layout Mistakes Do College Gyms Make When Deploying Low Row Machines?

The most common deployment errors are ignoring overhead obstructions, failing to reserve rear access space, and designing for average-user flow instead of peak-hour surge.

Ceiling clearance gets the engineering attention, but floor layout mistakes cause just as much operational friction. Here are the patterns I see repeatedly across campus gym projects:

Overhead obstruction blindness. The architectural drawing shows a clean ceiling. The as-built condition includes fire sprinkler drops, HVAC supply diffusers, and pendant light fixtures that hang well below the structural slab. The Low Row Machine gets installed, and suddenly the rail carriage path intersects with a sprinkler head. Relocating MEP services after equipment is in place is expensive and disruptive. The fix is simple: overlay the equipment elevation drawing onto the as-built MEP coordination drawing before finalizing the floor plan. [NEED_CITE: MEP coordination requirements for fitness facility equipment layout]

Rear access neglect. Selectorized Low Row Machine units need rear access for cable inspection, selector pin mechanism service, and stack area cleaning. I have seen layouts where the machine is pushed flush against a wall, leaving zero clearance behind the frame. Maintenance technicians cannot reach the rear panels, and dust accumulates in the stack housing. A minimum rear clearance of a comfortable working width is essential. Plate-loaded units need side clearance for plate loading, which is a different spatial demand entirely.

Peak-hour queue geometry. College gyms experience extreme usage spikes between class blocks. A single Low Row Machine station with a bench that faces a high-traffic aisle creates a bottleneck: the waiting user stands in the aisle, blocking circulation, while the active user needs elbow room on both sides. The better approach is to cluster low row stations in a dedicated bay with perpendicular orientation to the main aisle, so waiting users queue within the bay footprint rather than spilling into circulation paths. This is a basic principle of fitness facility flow design, yet it is routinely ignored in cost-driven layouts that maximize machine count without considering human movement.

A university sports center renovation in the Greater Manila area demonstrated all three mistakes in sequence. The initial layout ignored the dropped beam grid, placed machines against walls with no rear access, and lined stations parallel to the main corridor. During peak hours, students waiting for low row stations blocked the primary walkway. The renovation team reoriented the strength bay, pulled machines off the wall for rear service access, and coordinated with the MEP contractor to relocate a sprinkler drop that sat directly in the rail path. The result was a layout that handled peak-hour volume smoothly and allowed maintenance staff to service equipment without moving other machines.

Conclusion

Ceiling clearance, rail travel, and user anthropometrics determine Low Row Machine deployment success—not stack weight.

College weight rooms that measure actual clear height after finishes, apply the clearance formula against P95 arm reach, choose selectorized configurations for compact overhead profiles, and design floor layouts with rear access and peak-hour queue geometry in mind will avoid the costly rework cycle that plagues underplanned projects. The machine that fits the room and the user is always the right machine, regardless of what the spec sheet says about poundage.
