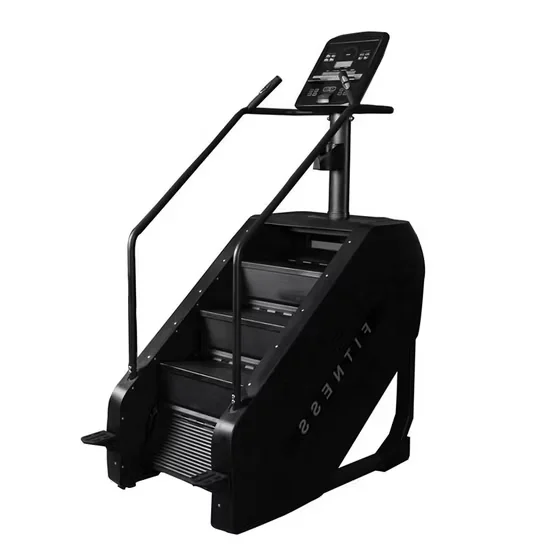

Commercial Gym Stair Climber Machine Master Stepper Cardio Equipment

Motor-Driven Step Integrity — The 180kg load capacity is sustained by a steel pipe frame engineered to resist torsional flex during continuous commercial stair climbing sessions.

Technical Specifications

Application Suitability

Where Thin-Gauge Frames Fail Under Repetitive Stepping Loads

A commercial stair climber machine must resist torsional twist across thousands of pedal cycles — not just support static weight.

Many units marketed for gym use rely on thin-wall steel tubing and spot-welded joints that pass visual inspection but develop micro-cracks under the repetitive eccentric loading of continuous stepping. Within months of high-traffic operation, the main uprights begin to flex at the pedal connection points, creating noticeable wobble and accelerating bearing wear. [NEED_CITE: structural fatigue behavior of thin-wall steel tubes under cyclic loading]

Cardiovascular Stepping in the Commercial Gym Ecosystem

This commercial stair climber machine occupies the vertical endurance plane, targeting the quadriceps, glutes, and calves through a continuous stepping motion that complements horizontal cardio equipment like treadmills and rowers. The 560×240 mm step area accommodates a wide range of stride lengths, while the 15–164 steps/min velocity range allows both warm-up pacing and high-intensity interval work. Its motor-driven mechanism delivers consistent step resistance regardless of user cadence, making it suitable for facilities with diverse membership profiles and high daily usage density.

Structural Stress Under Continuous Commercial Operation

The motor-driven step mechanism generates cyclical torsional loads on the frame, particularly at the junction where the main uprights meet the base assembly. Each pedal stroke applies an eccentric downward force that, over thousands of repetitions per day, tests the fatigue resistance of every welded joint and load-bearing tube. The sealed bearing system within the step drive must withstand dust, sweat, and cleaning chemical exposure without developing play that translates into step wobble. The steel pipe frame gauge and tube cross-section directly determine how much lateral deflection occurs under a 180kg user at maximum stepping velocity. Powder coating adhesion at high-contact zones — handgrip mounts, console brackets, base feet — determines whether bare steel is exposed to corrosive gym environments within the first year. [NEED_CITE: bearing seal performance in high-humidity fitness equipment environments]

Reading the Structural Specifications

The steel pipe frame construction uses a defined tube cross-section that resists bending moments generated during the downward pedal stroke — thicker gauge walls raise the deformation threshold before permanent flex occurs. The motor drive system eliminates the variability of self-powered mechanisms, where step speed and resistance depend entirely on user weight and cadence; a motor-driven unit maintains consistent pedal velocity across users of different body masses. The 560×240×200 mm step area provides sufficient surface for secure foot placement across a broad range of shoe sizes, reducing slip risk during high-cadence sessions. The integrated OSD console tracks time, steps, calories, and heart rate without requiring external device pairing, which reduces points of electronic failure in a shared-use environment.

The Hidden Cost of Structural Shortcuts

Reducing frame steel to thin-wall tubing below the gauge needed for torsional rigidity leads to visible upright flex within months — a structural failure that creates user safety liability and forces premature equipment replacement. Spot-welded joints at high-stress junctions crack under cyclic loading, often without visible warning, until a component shifts enough to become noticeable during use. Non-sealed bearings in the step drive accumulate dust and moisture, developing play that translates into audible grinding and uneven pedal travel. Low-density upholstery on handgrip pads compresses permanently under daily use, requiring replacement within the first year. Thin powder coating chips at contact points, exposing bare steel to sweat and cleaning agents that accelerate surface corrosion. [NEED_CITE: weld joint fatigue classification under cyclic structural loading]

Why Source This Equipment From BICKFIT

The steel pipe frame is constructed from mill-certified Q235 industrial steel with traceable material origin, ensuring consistent gauge and yield behavior across every unit produced. Robotic MIG welding produces continuous weld lines at every structural junction, eliminating the spot-weld weak points that fail under repetitive stepping loads. Every commercial stair climber machine undergoes individual load testing before shipment — not sample-based inspection — verifying that the frame, motor mount, and step mechanism perform within specification under a 180kg static and dynamic load. The 200μm scratch-resistant powder coating is applied after sandblast surface preparation, providing durable protection against sweat, cleaning chemicals, and mechanical contact at high-wear zones. The 1400×700×2000 mm footprint is accounted for in 2D-3D CAD floor planning, ensuring safe clearance spacing between this unit and adjacent cardio or strength equipment for compliant user flow. OEM customization is available for frame color, console branding, and upholstery selection to match facility design standards.

Documentation & Quality Records

• Mill-certified steel material test reports for frame steel pipe
• ISO 9001:2015 quality management system certificate
• CE conformity declaration for electrical and mechanical safety
• SGS factory audit report verifying production capability
• Individual unit load test record with pass/fail documentation
• Three-stage QC inspection log covering welding, coating, and assembly
• 2D-3D CAD floor layout drawing with clearance spacing marked
• Installation manual with torque specifications and spare parts list

Installation, Layout & Maintenance

• Maintain minimum 600mm clearance on all sides of the 1400×700 mm footprint for safe user mounting and dismounting
• Install on level, load-bearing flooring capable of supporting 148kg static weight plus dynamic stepping forces
• Verify all frame bolts to specified torque after initial 50-hour operation and re-check quarterly
• Inspect motor drive bearings and step mechanism seals every six months for dust ingress or play
• Clean powder-coated surfaces with pH-neutral cleaner; avoid abrasive pads that compromise the 200μm coating layer
• Replace handgrip pads and console contact surfaces as part of scheduled preventive maintenance

Requesting a Facility-Specific Quote

Provide your cardio zone floor area and current equipment list to receive a 2D-3D CAD layout showing optimal placement of this commercial stair climber machine with compliant clearance spacing. Specify your average daily user count so the structural grade and motor duty cycle can be matched to your traffic volume. Indicate target user body weight range to confirm the 180kg capacity aligns with your membership profile. Customization requests for frame color, console language, or upholstery material can be included in the specification sheet.

Frequently Asked Questions

Q: How do I identify whether a stair climber is built for true commercial use versus light-commercial or home environments?
A: Commercial-grade units use defined steel pipe gauge with documented material certification, motor-driven step mechanisms rated for continuous daily operation, sealed bearings in the drive system, and individual load testing before shipment. Light-commercial models typically rely on thinner tubing, self-powered or lower-duty motors, and sample-based quality checks that do not verify every unit.

Q: What frame steel specification is necessary for high-traffic gym stair climbing equipment?
A: The frame must use mill-certified industrial steel pipe with sufficient wall thickness and cross-section to resist torsional flex under repetitive eccentric pedal loads. Continuous robotic MIG welding at all structural joints prevents the spot-weld cracking that occurs under cyclic loading. Material traceability to the original coil ensures consistent mechanical properties across production batches.

Q: What are the maintenance differences between motor-driven and self-powered stair climbers?
A: Motor-driven systems maintain consistent step velocity regardless of user weight, reducing uneven wear on the step mechanism and bearings. Self-powered units place variable load on the drive system depending on user cadence and body mass, which can accelerate bearing wear and require more frequent drive mechanism inspection. Motor-driven units need periodic bearing seal checks and motor brush inspection per the maintenance schedule.

Q: How much clearance space is needed around a commercial stair climber for safe facility layout?
A: A minimum of 600mm clearance on all sides of the 1400×700 mm base footprint is recommended to allow safe user mounting, dismounting, and emergency exit. This spacing also provides access for maintenance inspection of the motor drive and frame joints. Facility floor plans should account for this clearance when positioning the unit relative to adjacent cardio or strength equipment.

Q: What warranty coverage applies to the motor and electronic components under commercial use?
A: The frame carries a 10-year structural warranty covering defects in steel and welding under normal commercial use. Motor and electronic console components are covered under separate warranty terms specified in the purchase agreement, with availability of replacement parts guaranteed through the product support system. Maintenance records and load test documentation support warranty claim processing.
