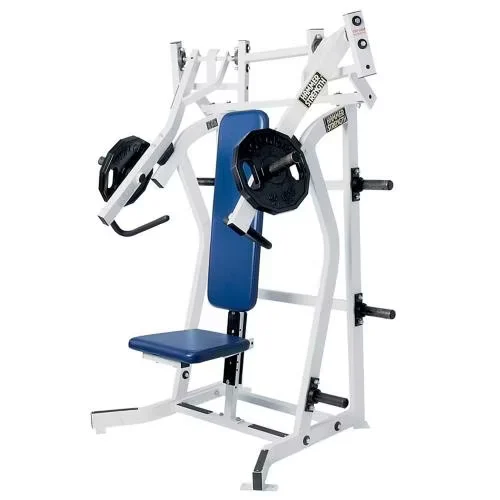

ISO-Lateral Chest/Back Machine for Commercial Gyms

Traceable Steel, Verified Welds — Every frame tube on this ISO-lateral chest and back machine is sourced from mill-certified Q345 coils, and robotic MIG welding produces continuous seams with no spot-weld weak points that could fail under repetitive heavy loading.

Technical Specifications

Application Suitability

Where Spot Welds Crack Before the Frame Bends

Many machines marketed as commercial-grade rely on vague steel specifications and spot-welded joints that develop fatigue cracks within months of sustained plate-loaded use. This ISO-lateral chest and back machine eliminates that failure mode through continuous robotic MIG welds along every structural seam. [NEED_CITE: weld classification and fatigue performance in structural steel]

The difference is not cosmetic — it is structural. Spot welds pass visual inspection but concentrate stress at discrete points. Under repeated converging-arm loading, those points become crack initiation sites. Continuous welds distribute fatigue across the entire joint length, meaning the frame outlasts the upholstery and bearings by a wide margin.

Positioning in the Strength Zone

This commercial ISO-lateral chest and back machine occupies the plate-loaded convergence plane, filling the gap between linear barbell pressing and fixed-path selectorized machines. The independent arm design allows unilateral or bilateral loading, accommodating users with significant strength imbalances between left and right sides. It pairs naturally with plate-loaded rows and shoulder convergence units to create a complete upper-body circuit. The footprint of 1850×1770 mm requires adequate clearance on all sides for safe plate loading and user entry.

Structural Stress Under Repetitive Converging Loads

Plate-loaded ISO-lateral arms generate eccentric and dynamic loading patterns that differ fundamentally from linear guide-rod machines. Each converging repetition applies torsional force to the pivot housing and lateral bending stress to the frame cross-members. Sealed bearings at every convergence point prevent dust and moisture ingress — the primary cause of play development in unsealed bushings. [NEED_CITE: bearing seal performance in high-traffic fitness environments] The 200μm powder coating resists chipping at grip contact points where users repeatedly load and unload plates, preventing bare steel exposure and subsequent corrosion.

Reading the Structural Specifications

The 3×3 inch frame tube with Q345 steel grade provides a higher moment of inertia than standard 2×3 inch tubes, directly resisting the lateral deflection that occurs when users load plates unevenly on independent arms. Robotic MIG welding at consistent heat input produces uniform penetration depth, eliminating the cold-joint defects common in manual spot welding. Sealed industrial bearings at the arm convergence pivot maintain rotational smoothness without the gradual play that develops in open bushings exposed to gym-floor dust and sweat. The 200μm powder coating, applied after sandblast surface preparation, creates a mechanical bond that resists impact chipping far better than thin electrostatic finishes.

The Hidden Cost of Structural Shortcuts

Frames built with thin-wall tubing deflect visibly under heavy plate loads, creating a perception of instability even before any structural failure occurs. Spot-welded joints that crack under repetitive loading create liability exposure — a failed weld during use is a foreseeable safety incident. Non-sealed bearings develop play within the first year of commercial use, requiring frequent replacement or generating member complaints about equipment feel. Low-density upholstery compresses permanently under daily use, exposing bare foam and creating hygiene concerns. Thin powder coating chips at plate-loading contact points, leading to rust formation that spreads beneath adjacent coating.

Why Specify This Equipment Here

Every frame tube on this ISO-lateral chest and back machine is traceable to its mill-certified coil, with Q345 grade verified by documentation rather than marketing claims. Robotic MIG welding produces continuous seams on every unit, not sample pieces. Each machine undergoes individual load testing before shipment — not batch sampling — confirming structural integrity at rated capacity. The 200μm industrial powder coating and 10-year frame warranty reflect confidence in long-term surface and structural performance. 2D-3D CAD floor planning support ensures this 1850×1770 mm footprint integrates with proper safety clearances and traffic flow around adjacent stations. OEM customization is available for facilities requiring specific colorways or branding integration.

Documentation & Quality Records

• Mill certification for Q345 frame steel grade and gauge thickness
• ISO 9001 quality management system certificate
• CE European conformity declaration
• SGS factory audit verification report
• Individual unit load testing record before shipment
• Three-stage QC inspection documentation
• 2D-3D CAD floor planning layout with clearance specifications
• Installation manual with torque specifications and spare parts list

Installation, Layout & Maintenance

• Maintain minimum 600 mm clearance on all sides of the 1850×1770 mm footprint for safe plate loading and user access
• Install on level, load-bearing floor capable of supporting 160 kg static weight plus dynamic plate loads
• Verify all structural bolts to specified torque after initial 30-day break-in period
• Inspect sealed bearings at arm pivot points quarterly for smooth rotation without play
• Clean 200μm powder-coated surfaces with non-abrasive, pH-neutral cleaners to preserve finish integrity
• Replace upholstery and grip covers as wear items based on facility usage intensity

Requesting a Structural Specification Review

Provide your strength zone floor area and target equipment list to receive 2D-3D CAD layout planning with verified clearance dimensions. Specify expected daily user volume to confirm this commercial ISO-lateral chest and back machine matches your facility’s structural duty cycle. Indicate target user population anthropometric range to verify arm convergence path and seat adjustment compatibility. Custom color, logo, and upholstery options are available for facilities with specific branding requirements.

Frequently Asked Questions

Q: How can I verify the steel grade claim on a commercial ISO-lateral chest and back machine?

A: Request mill certification documentation that traces the frame steel to a specific coil heat number. Legitimate manufacturers provide this traceability for Q345 or equivalent structural steel. Vague terms like "commercial-grade" or "heavy-duty" without verifiable specification should be treated as marketing language rather than engineering data.

Q: What bearing specification ensures long-term smooth operation in high-traffic commercial gyms?

A: Sealed industrial bearings at all pivot and convergence points prevent dust and moisture contamination that causes premature wear in unsealed bushings. Open bushings develop measurable play within months of commercial use, while properly sealed bearings maintain rotational smoothness for the equipment’s structural service life without requiring lubrication maintenance.

Q: How does ISO-lateral independent arm design differ from converging cam-based machines?

A: ISO-lateral arms allow each side to move independently through a converging arc, accommodating natural bilateral strength differences and unilateral training. Cam-based machines force both arms through a fixed synchronized path. Independent arms provide greater movement freedom but require robust frame construction to resist torsional loading during uneven use.

Q: What welding method prevents frame fatigue under repetitive heavy loading?

A: Robotic MIG welding with continuous bead placement distributes fatigue stress along the entire joint length rather than concentrating it at discrete spot-weld points. Continuous welds with consistent heat input eliminate cold-joint defects and provide uniform penetration depth, meaning the joint strength approaches the base metal strength under cyclic loading conditions.

Q: How should I plan floor layout for ISO-lateral machines with proper clearance?

A: The 1850×1770 mm footprint requires minimum 600 mm clearance on all sides for safe plate loading access and user entry-exit paths. Adjacent equipment should allow unobstructed traffic flow without creating pinch points. Request 2D-3D CAD planning from the manufacturer to verify integration with your specific strength zone dimensions and emergency egress requirements.
