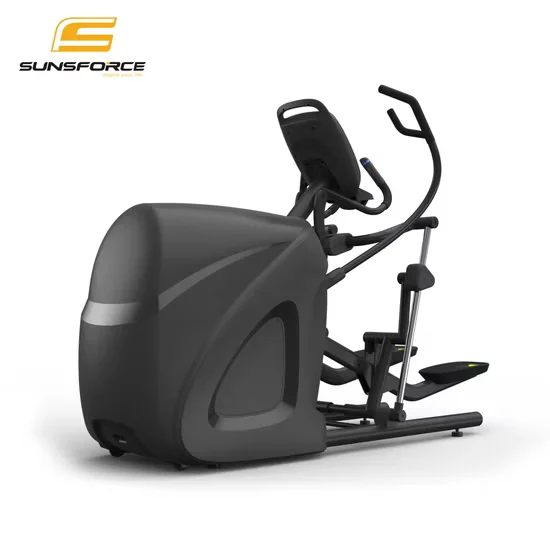

Commercial Cross Trainer Elliptical Machine CTC60-T for Gym Fitness

Continuous weld integrity under cyclic loading — robotic MIG welding eliminates spot-weld failure points that compromise structural longevity in high-traffic cardio environments.

Technical Specifications

Application Suitability

When Bearing Play Compromises Stride Consistency

Sealed industrial bearings maintain pedal path accuracy through thousands of daily cycles.

Light-commercial ellipticals develop bearing play within months of continuous operation, causing pedal wobble and uneven stride feel. The CTC60-T addresses this with sealed bearing systems rated for sustained commercial use, preventing the progressive degradation that forces premature replacement cycles. Console electronics in high-humidity gym environments face corrosion from sweat aerosol and cleaning chemicals — the 10.1" touch screen on this commercial elliptical cross trainer 10.1 inch touch screen unit is engineered for continuous operation under these conditions. [NEED_CITE: bearing seal classification for stationary cardio equipment in humid environments]

Cardio Floor Positioning and Movement Pattern Coverage

The CTC60-T occupies the primary elliptical station in commercial cardio zones, covering bilateral lower-body motion with integrated upper-body engagement. Its 230mm pedal center distance and 1-10 stride grade accommodate users across a broad anthropometric range, from compact builds to taller athletes. This commercial elliptical cross trainer 10.1 inch touch screen unit complements treadmills and rowers by providing low-impact cardiovascular conditioning without joint compression. The 180kg maximum user capacity ensures structural adequacy for diverse gym populations, while 25-level resistance progression supports both rehabilitation protocols and performance training.

Structural Stress Under Sustained Commercial Operation

Commercial cardio equipment experiences continuous cyclic loading — each pedal revolution generates rotational forces transmitted through crank arms, bearings, and frame joints. At 240kg net weight, the CTC60-T provides mass stability that prevents frame resonance during high-cadence operation. The pedal-to-crank connection endures repetitive shear stress; inadequate fastening or soft metallurgy leads to progressive loosening and eventual failure. Weld joints at the main frame intersection bear combined static and dynamic loads — continuous robotic MIG welding distributes stress along the full joint length, unlike spot welds that concentrate force at discrete points. [NEED_CITE: fatigue performance of continuous versus intermittent welds in structural steel frames] Bearing systems encounter contamination from floor dust and user sweat; sealed constructions prevent particulate ingress that accelerates race and ball wear. The 200μm powder coating resists chipping at contact points where users grip or adjust the frame, maintaining corrosion protection and appearance over extended service life.

Engineering Parameters That Define Commercial Viability

The 240kg net weight reflects material allocation for structural rigidity — lighter frames sacrifice stability to reduce shipping costs. Frame tubing gauge and cross-section determine deflection thresholds under the 180kg maximum user load; undersized tubes flex perceptibly during vigorous stride cycles, creating an unstable platform feel. The 1-25 resistance system implementation affects maintenance burden — electromagnetic resistance mechanisms require fewer mechanical adjustments than manual magnetic systems with physical brake pads. Pedal center distance of 230mm aligns with ergonomic research on natural hip and knee tracking, reducing lateral joint stress compared to narrower platforms. Console durability in commercial settings depends on component sealing against moisture ingress and thermal management for continuous display operation. [NEED_CITE: powder coating thickness standards for commercial fitness equipment corrosion resistance]

The Hidden Cost of Structural Compromise

Thin-wall frame tubing deflects under repeated loading, creating perceptible flex that users interpret as equipment instability — this perception drives membership complaints and accelerates replacement decisions. Spot-welded joints crack progressively under cyclic stress, often without visible warning until catastrophic failure occurs, creating liability exposure for facility operators. Unsealed bearings require frequent replacement as contamination degrades rolling elements, generating maintenance labor costs and equipment downtime. Low-density upholstery compresses permanently within months of commercial use, requiring replacement that interrupts equipment availability. Inadequate powder coating chips at high-contact areas, exposing bare steel to sweat-induced corrosion that spreads beneath adjacent coating. Non-standard fasteners and proprietary components eliminate third-party replacement options, forcing dependence on single-source suppliers with extended lead times. [NEED_CITE: fastener standardization and maintenance economics in commercial fitness equipment]

Why Specify This Equipment Configuration

The CTC60-T integrates structural specifications validated through individual unit load testing — every machine undergoes verification before shipment, not batch sampling. The 10.1" touch screen console and 25-level resistance system serve high-traffic commercial environments where equipment availability directly impacts member retention. At 2120×790×1680mm, the CTC60-T footprint requires adequate aisle clearance for safe user ingress and egress — facility planners should allocate minimum 600mm clearance on all operational sides. The 180kg user capacity and 230mm pedal spacing accommodate diverse populations without structural compromise. OEM branding and upholstery color customization align equipment aesthetics with facility design standards. Documentation includes 2D-3D layout support for cardio zone optimization, ensuring proper spacing between the commercial elliptical cross trainer 10.1 inch touch screen units and adjacent equipment.

Documentation & Quality Records

• Mill-certified steel material test reports for frame tubing
• ISO 9001:2015 quality management system certification
• CE conformity declaration for European market access
• EN 957 test reports for stationary training equipment
• Individual unit load test records with pass/fail documentation
• Three-stage quality control inspection reports
• Installation manuals with exploded parts diagrams

Installation, Layout & Maintenance

• Allocate 2120×790mm footprint plus 600mm clearance on all sides for safe operation
• Verify floor load capacity supports 240kg static weight plus dynamic user loading
• Assemble main frame, console mast, and pedal arms per installation sequence
• Check and re-torque all structural bolts after initial 50 hours of operation
• Inspect sealed bearings for smooth rotation quarterly; replace if play develops
• Clean touch screen with non-abrasive solutions; avoid solvent-based cleaners
• Wipe frame surfaces after each use to prevent sweat accumulation on powder coating

Requesting Configuration and Layout Support

Provide cardio zone dimensions and equipment list to receive 2D-3D spatial planning documentation. Specify expected daily usage hours to confirm structural rating appropriateness for your operational intensity. Indicate target user population characteristics to verify the 180kg capacity and 230mm pedal spacing meet accessibility requirements. Custom branding, upholstery color, and console language options are available for facility-specific integration.

Frequently Asked Questions

Q: How does commercial-grade elliptical construction differ from light-commercial models?

A: Commercial ellipticals use heavier frame tubing, sealed bearings rated for continuous operation, and continuous weld joints rather than spot welds. The CTC60-T’s 240kg net weight reflects material allocation for structural rigidity under 180kg user loads. Light-commercial units sacrifice frame mass and bearing quality to reduce costs, resulting in premature wear and instability under high-traffic conditions.

Q: What maintenance do touch screen cardio consoles require in commercial environments?

A: Touch screens in gym environments face sweat aerosol, cleaning chemical exposure, and continuous operation. The CTC60-T console uses sealed construction to prevent moisture ingress. Maintenance involves regular cleaning with non-abrasive solutions and periodic inspection of connection integrity. Component replacement follows modular design principles to minimize downtime.

Q: How do adjustable stride and fixed-stride ellipticals compare for commercial use?

A: The CTC60-T offers 1-10 stride grade adjustment, accommodating users with different leg lengths and mobility restrictions. Fixed-stride ellipticals suit facilities with uniform user populations but limit accessibility. Adjustable stride increases equipment versatility, reducing the number of units needed to serve diverse gym members effectively.

Q: What floor space and clearance does this elliptical require?

A: The CTC60-T measures 2120×790×1680mm. Commercial layout standards require minimum 600mm clearance on all sides for safe user entry, exit, and emergency access. Total allocated space per unit should be approximately 3320×1990mm. Proper spacing prevents user interference and maintains traffic flow in high-volume cardio zones.

Q: How should bearings and pedal connections be maintained?

A: Sealed bearings require quarterly inspection for smooth rotation and absence of play. If roughness or looseness develops, replace the bearing cartridge. Pedal-to-crank connections should be checked for tightness monthly. Lubricate pivot points per maintenance schedule. Replace pedal straps or clips when wear compromises foot retention security.
