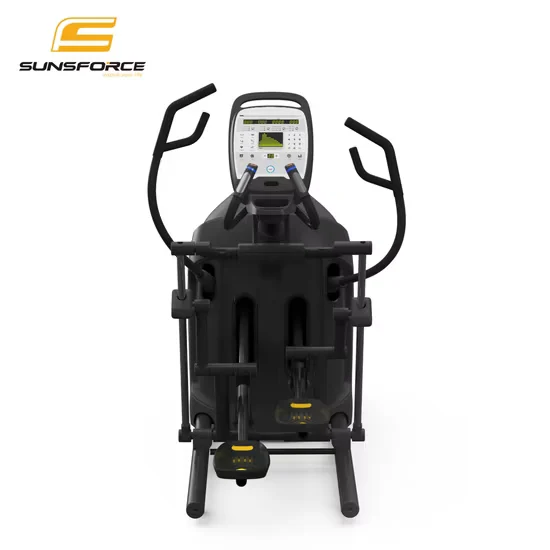

Commercial Elliptical Cross Trainer Gym Fitness Equipment Germany Designed

Sealed Bearing Architecture — The CTC60-T employs industrial-grade sealed bearings throughout its stride mechanism, eliminating the contamination pathway that causes play and noise in open-bushing systems after months of high-traffic gym use.

Technical Specifications

Application Suitability

When Open Bearings Fail Before the Frame Does

The commercial elliptical cross trainer gym fitness equipment market is saturated with units that pass showroom inspection but develop audible play and stride inconsistency within six months of commercial deployment. The CTC60-T addresses this through sealed bearing systems and a 240kg structural mass that anchors the stride mechanism against harmonic vibration.

Non-sealed bushing bearings allow sweat aerosol and floor dust to migrate into the bearing race, accelerating wear and creating the looseness that users describe as a "wobbly" feel. On a machine rated for continuous gym-floor operation, this degradation is not cosmetic — it alters the stride path and places off-axis loads on the crank assembly. [NEED_CITE: bearing seal classification and contamination ingress in fitness equipment]

Cardio Floor Positioning Within the Strength Facility

The CTC60-T occupies the sustained-heart-rate zone of a commercial gym cardio zone, bridging the gap between treadmill running and stationary cycling. Its converging arm and leg path engages the quadriceps, glutes, and upper back through a continuous elliptical plane, making it a natural complement to the free-weight and plate-loaded strength stations. The 230mm pedal center distance aligns with natural hip-width tracking, reducing lateral knee stress across a broad user anthropometry range. At 240kg net weight, this commercial elliptical cross trainer gym fitness equipment remains stable during high-cadence intervals without requiring floor anchoring.

Structural Stress Under Continuous Commercial Loading

A commercial gym elliptical endures a fundamentally different stress profile than a home unit. The 180kg maximum user weight generates dynamic loading that far exceeds static mass — each stride cycle produces impact forces at the pedal-crank junction and oscillating torque at the arm pivot bearings. Over thousands of daily cycles, these forces target weld joints at the frame-to-stride-mount interface and accelerate wear in any bearing system lacking adequate sealing. The CTC60-T’s 240kg frame mass dampens resonance that would otherwise amplify at the console mount and handlebar junction. [NEED_CITE: fatigue loading patterns in commercially deployed cardiovascular equipment]

Reading the Structural Specifications

The 240kg net weight of the CTC60-T is not arbitrary mass — it reflects the steel gauge and tube dimensions required to maintain rigidity under a 180kg dynamic user load. Heavier frame construction raises the natural frequency of the structure above the stride cadence range, preventing the harmonic shaking that users associate with instability. The 25-level resistance system and 10-grade stride adjustment allow the machine to serve both low-impact rehabilitation protocols and high-output interval sessions without mechanical compromise. Sealed bearings at all pivot points prevent the contamination-driven wear that shortens service life in open-bushing designs. The 200μm powder coating, applied over sandblasted steel, resists the chipping and corrosion that occur at high-contact zones where users grip and where cleaning chemicals accumulate. [NEED_CITE: powder coating adhesion and film thickness standards for fitness equipment]

The Hidden Cost of Structural Compromise

Specifying a lighter-frame elliptical to meet a procurement target creates downstream liabilities. Thin-wall tubing flexes under repeated loading, loosening bolted joints and accelerating bearing wear as alignment drifts. Non-sealed bearings require frequent replacement — each service call costs more than the initial price differential between a sealed and unsealed unit. Powder coating applied below industrial thickness chips at contact points, exposing bare steel to sweat-induced corrosion that spreads beneath the surrounding finish. These failures are not warranty events; they are predictable outcomes of engineering choices made at the specification stage. [NEED_CITE: total cost of ownership analysis for commercial fitness equipment]

Why Specify the CTC60-T for Your Facility

Every CTC60-T unit ships with mill-certified steel documentation traceable to the production coil, ensuring the frame material meets the specified grade rather than a supplier’s verbal assurance. Robotic MIG welding produces continuous fillet welds at all structural joints, eliminating the cold-joint and spot-weld failures that propagate cracks under cyclic loading. Each unit undergoes individual static and dynamic load testing before shipment — not batch sampling. The 200μm industrial powder coating provides the film build necessary to withstand daily cleaning and sweat exposure across a commercial service life. A 10-year frame warranty reflects confidence in the structural engineering, not a marketing commitment. For facility planners, the CTC60-T’s 2120 × 790mm footprint and required safety clearances are incorporated into the 2D-3D CAD layout support provided with every order. OEM branding and upholstery color options are available to match facility design standards.

Documentation & Quality Records

• Mill-certified steel test reports traceable to coil production batch
• ISO 9001:2015 quality management system certificate
• CE conformity declaration for European market deployment
• SGS factory audit verification report
• Individual unit load test record shipped with each CTC60-T
• Three-stage QC inspection documentation per production lot
• 2D-3D CAD layout drawings with safety clearance dimensions
• Installation manual and exploded parts diagram with part numbers

Installation, Layout & Maintenance

• Position CTC60-T units with minimum 600mm rear clearance and 900mm side aisles per commercial safety standards
• Verify floor load capacity supports 240kg static weight plus dynamic user loading before installation
• Assemble console mast and arm linkage per manual torque specifications; re-check fasteners after 50 operating hours
• Inspect sealed bearing rotation smoothness quarterly; replace only if audible grinding or axial play develops
• Clean powder-coated surfaces with pH-neutral detergent; avoid abrasive pads that compromise the 200μm film
• Monitor pedal crank bolt tension monthly; the 180kg user rating generates significant cyclic torque at this junction

Requesting a Structural Specification Review

Provide your cardio zone floor plan dimensions and target unit count to receive a 2D-3D CAD layout incorporating the CTC60-T footprint and required safety clearances. Specify your anticipated daily usage hours and peak user weight range so the structural grade can be confirmed against your operational profile. If your facility requires custom frame colors, branded console panels, or specific upholstery materials, these OEM parameters should be documented at the inquiry stage to avoid specification revision delays.

Frequently Asked Questions

Q: How does the sealed bearing system in the CTC60-T differ from open-bushing designs found in lighter commercial ellipticals?
A: Sealed bearings enclose the rolling elements within a shielded race that prevents sweat aerosol, floor dust, and cleaning residue from entering the bearing cavity. Open bushings rely on a porous material that absorbs lubricant and contaminants simultaneously, leading to accelerated wear and audible play within months of high-traffic use. The sealed design extends maintenance intervals significantly and preserves stride smoothness throughout the equipment service life.

Q: What structural factors determine whether an elliptical can sustain eight or more hours of daily commercial use?
A: Frame mass and steel gauge establish the rigidity threshold that prevents harmonic vibration at high stride cadences. Welding methodology determines whether joints survive cyclic loading without crack initiation. Bearing seal quality dictates contamination resistance over thousands of operating hours. The CTC60-T addresses all three through its 240kg frame construction, robotic continuous welds, and sealed bearing system across all pivot points.

Q: How does the 230mm pedal center distance affect user comfort and joint loading during extended sessions?
A: The 230mm spacing aligns the pedal path with the natural width of the hip joint during standing locomotion, minimizing lateral knee deviation and reducing shear forces on the joint capsule. Narrower pedal spacing forces the knees inward during the stride cycle, while wider spacing creates excessive hip abduction. This dimension accommodates the majority of adult users without requiring individual Q-factor adjustment.

Q: What maintenance intervals should a commercial gym expect for the CTC60-T under continuous daily operation?
A: Sealed bearings require inspection quarterly rather than the monthly attention that open-bushing systems demand. The powder-coated frame needs cleaning with non-abrasive agents to preserve the 200μm film integrity. Pedal crank fasteners should be torque-checked monthly due to the cyclic loading generated by users up to 180kg. No lubrication of the bearing system is required under normal operating conditions.

Q: Can the CTC60-T accommodate both rehabilitation users and high-intensity athletic training within the same facility?
A: The 10-grade stride adjustment and 25-level resistance range provide the mechanical span necessary for both low-impact recovery sessions and high-output interval protocols. The converging arm path allows upper-body engagement for athletic conditioning or can be bypassed for lower-body-focused rehabilitation work. The 180kg user capacity and 230mm pedal spacing accommodate a wide anthropometry range across both user populations.
