Commercial Magnetic Elliptical Machine for Gym Fitness Equipment

Built for Continuous Commercial Load — 240kg net weight chassis paired with 180kg max user capacity ensures stable operation across high-traffic cardio zones without lateral drift or vibration buildup.

Technical Specifications

Application Suitability

When Magnetic Resistance Eliminates the Maintenance Cycle

Most cardio equipment specs hide critical structural details — vague "commercial grade" claims without verifiable steel gauge, unsealed bearings that develop play within months, and thin coatings that chip at high-contact points. The commercial magnetic elliptical machine addresses these gaps through a 25-level magnetic resistance system that removes friction-based wear entirely.

Magnetic resistance removes belt degradation and pad replacement from the maintenance schedule.

Operators running friction-braked ellipticals in high-traffic environments typically face belt stretch, pad wear, and resistance inconsistency within the first year. Magnetic systems eliminate physical contact between the resistance mechanism and the flywheel, meaning the 25 precision levels remain consistent regardless of usage volume. The LED console provides stride adjustment from grade 1-10 and step depth grade 1-15, accommodating users across a wide anthropometric range without mechanical recalibration between sessions. [NEED_CITE: magnetic resistance durability in continuous commercial operation]

Cardio Zone Positioning for Sustained Throughput

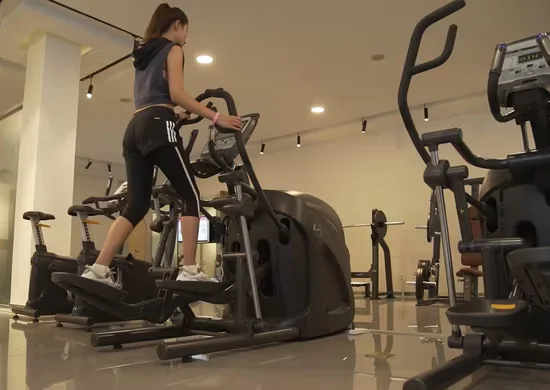

This commercial magnetic elliptical machine occupies the low-impact cardiovascular training plane, complementing treadmills and rowers in mixed cardio layouts. The 2120×790×1680mm footprint requires adequate clearance between stations — operators should maintain minimum 600mm side-to-side spacing to prevent elbow contact during peak-hour density. The 1-10 stride grade and 1-15 step depth grade accommodate users from shorter stature to tall athletes, reducing the need for multiple machine sizes in a single facility. With 180kg max user weight and 240kg net weight, the unit handles continuous commercial traffic without stability compromise.

Structural Stress Under High-Frequency Operation

Cardio equipment in commercial environments faces cyclic loading patterns distinct from strength machines — repetitive pedal strokes generate torsional stress on the frame, lateral forces on the pivot bearings, and sustained contact pressure on pedal surfaces and handle grips. The 240kg chassis mass dampens vibration during high-RPM operation, preventing the resonance buildup that accelerates weld fatigue in lighter frames. Sealed bearings at pivot points resist dust and moisture infiltration from sweat and cleaning chemicals, maintaining smooth rotation through thousands of daily cycles. The 200μm powder coating withstands repeated wiping with disinfectant solutions without chipping at high-contact zones. [NEED_CITE: bearing seal performance in humid commercial environments]

Reading the Structural Specifications

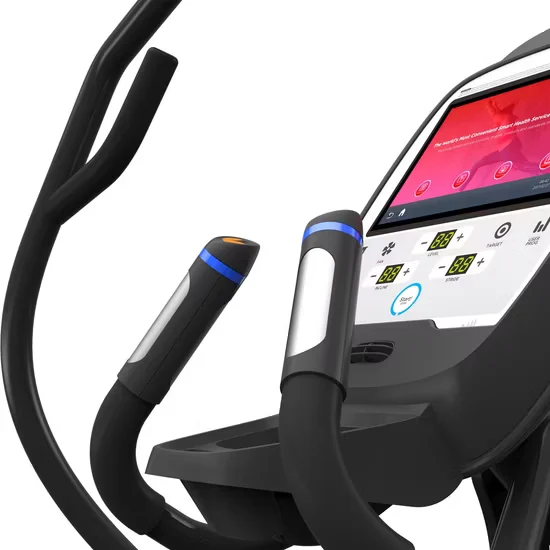

The 240kg net weight signals substantial frame mass — this chassis volume provides the inertial stability needed to prevent rocking during aggressive stride patterns at resistance levels 15-25. The 230mm pedal center distance establishes a natural hip-width track, reducing lateral knee stress compared to narrower pedal platforms. The LED console’s 1-10 stride grade adjusts the elliptical path length, while the 1-15 step depth grade modifies incline angle — both adjustments operate through sealed mechanical linkages that resist wear from repeated repositioning. Magnetic resistance at 25 levels operates without physical contact, eliminating the friction pad degradation that forces resistance recalibration in budget-tier machines. The unfolded assembly state means the unit arrives ready for installation without on-site frame joining, reducing setup time and ensuring factory-aligned structural integrity.

The Hidden Cost of Structural Compromise

Lighter elliptical frames — typically 120-160kg net weight — deflect under sustained commercial loading, creating pedal wobble that accelerates bearing wear and compromises user confidence. Spot-welded joints in budget units develop micro-cracks under cyclic torsional stress, often failing catastrophically before visible deformation appears. Non-sealed bearings allow sweat and cleaning residue to penetrate the raceway, generating grinding noise and play within months of installation. Thin powder coatings — below 150μm — chip at handle grip contact points, exposing bare steel to corrosion from sweat salts. These failures compound: bearing play increases frame stress, accelerating weld fatigue; coating failure spreads rust, requiring full unit replacement rather than component service. [NEED_CITE: structural fatigue in cyclic-loaded fitness equipment frames]

Why Source This Configuration Here

The commercial magnetic elliptical machine ships with mill-certified steel documentation traceable to the original coil, verifying material composition rather than relying on unverified "commercial grade" claims. Robotic MIG welding produces continuous weld seams without the cold joints and spot-weld weak points that compromise frame longevity. Every unit undergoes individual load testing before shipment — not sample-based inspection — confirming structural integrity at the 180kg user capacity threshold. The 200μm industrial powder coating provides scratch and chemical resistance across the full frame surface. The 2120×790×1680mm dimensions integrate into 2D-3D CAD floor plans with verified safety clearances between stations. Customization options cover color, branding, and upholstery selection to match facility design standards.

Documentation & Quality Records

• Mill-certified steel specification for frame material verification
• ISO 9001:2015 quality management system certificate
• CE conformity declaration for European market compliance
• EN 957 test report for stationary training equipment safety
• SGS factory audit verification report
• Individual unit load testing record at 180kg capacity
• Three-stage QC inspection documentation
• 2D-3D CAD layout files with clearance specifications
• Installation manual and replacement parts catalog

Installation, Layout & Maintenance

• Position units with minimum 600mm lateral clearance based on 2120×790mm footprint
• Verify floor load capacity supports 240kg static weight plus dynamic user load
• Confirm level installation using adjustable feet to prevent frame twist
• Inspect sealed bearings quarterly for rotation smoothness and noise
• Clean powder-coated surfaces with non-abrasive disinfectant to maintain 200μm coating integrity
• Check pedal and handle grip contact points for coating wear annually

Requesting Configuration Details

Provide cardio zone dimensions and equipment list to receive 2D-3D floor planning with verified clearance between the commercial magnetic elliptical machine and adjacent stations. Specify daily usage hours and peak member count to confirm structural grade alignment with operational intensity. Indicate target user height and weight range to verify stride grade and step depth grade accommodate your population. Customization requests for color, facility branding, or upholstery selection should be documented at inquiry stage.

Frequently Asked Questions

Q: How does magnetic resistance compare to friction-based systems in commercial environments?
A: Magnetic resistance eliminates physical contact between the braking mechanism and flywheel, removing belt stretch, pad wear, and resistance drift from the maintenance cycle. Friction systems require periodic pad replacement and belt tension adjustment as components wear under continuous use. The 25-level magnetic system maintains consistent resistance regardless of usage volume, reducing service calls and downtime in high-traffic facilities.

Q: What structural factors determine elliptical lifespan under daily commercial operation?
A: Frame mass, welding method, and bearing seal quality are primary determinants. The 240kg chassis prevents vibration-induced fatigue, robotic MIG welding eliminates spot-weld failure points, and sealed bearings resist contamination from sweat and cleaning chemicals. Units tested individually at rated capacity before shipment demonstrate structural integrity that sample-based inspection cannot verify.

Q: How do stride grade and step depth grade affect user accommodation?
A: The 1-10 stride grade adjusts elliptical path length to match user leg length, while the 1-15 step depth grade modifies incline angle for varied muscle engagement. Together, these adjustments accommodate users from shorter to tall statures without requiring multiple machine sizes, optimizing floor space efficiency in facilities serving diverse populations.

Q: What maintenance intervals apply to magnetic resistance ellipticals in commercial use?
A: Magnetic systems require minimal maintenance compared to friction-braked units. Sealed bearings should be inspected quarterly for smooth rotation. Powder-coated surfaces need regular cleaning with non-abrasive disinfectant. Unlike friction systems, no belt tension adjustment, pad replacement, or resistance recalibration is required, significantly reducing service labor in high-traffic environments.
