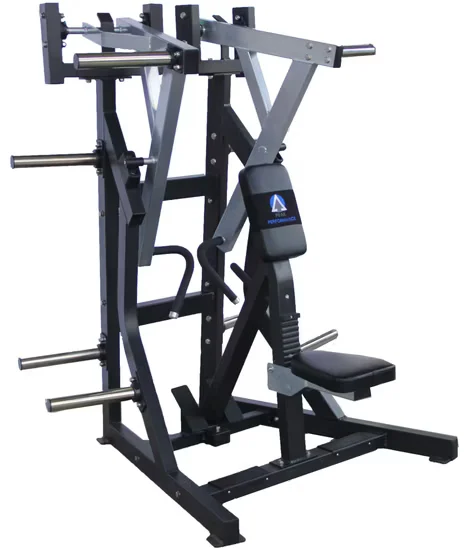

Commercial Plate Loaded ISO-Lateral Low Row Machine for Gym

Continuous-Weld Steel Frame — Every load-bearing joint on this plate loaded iso-lateral low row uses robotic MIG continuous welds, eliminating the spot-weld weak points that crack under repeated heavy plate loading.

Technical Specifications

Application Suitability

Where a Spot Weld Fails Before the Steel Does

The frame tube gauge matters less if the weld connecting it cannot carry the load.

Most commercial plate loaded machines quote "commercial-grade" steel without providing mill-certified specs traceable to the coil. The real failure point sits at the joint: spot welds that pass a visual factory inspection but develop micro-cracks after months of unilateral plate-loaded rowing, where asymmetric loading concentrates stress at the pivot arm connection. [NEED_CITE: weld classification and fatigue performance in structural steel] I have seen low row units pulled off the floor within the first year because the pivot arm bracket separated from the main upright — not from steel failure, but from a cold joint hidden under powder coating. The commercial plate loaded iso-lateral low row machine here addresses that with robotic continuous MIG weld lines on every load-bearing joint, verified through three-stage inspection before the unit ships.

Positioning the Low Row in a Commercial Strength Zone

The iso-lateral low row targets the mid-back, lats, and rhomboids through a converging pulling path that mirrors natural scapular retraction. In a strength zone layout, it complements a high row or lat pulldown by covering the horizontal pull plane, and pairs with a T-bar row station for varied grip and angle options. This commercial plate loaded iso-lateral low row machine fits high-traffic facilities where plate loaded durability outweighs the convenience of selectorized stacks, and the iso-lateral arm design accommodates users from smaller-framed members to large athletes without requiring adjustment.

Structural Stress Under Daily High-Volume Use

Every rowing rep generates eccentric loading on the pivot arm — the return phase places shear force on the bearing and weld at the arm-to-frame junction. In a commercial gym running eight or more hours daily, that pivot point endures thousands of cycles per week, and any bearing play compounds into cable misalignment and accelerated pulley wear. [NEED_CITE: EN 957 structural requirements for stationary training equipment] The sealed bearings on this unit prevent sweat and chalk dust infiltration that degrades unsealed bushings within months. The powder coating at handle contact points and plate loading horns faces constant abrasion from knurled collars and chalky hands, making the 200μm coating thickness relevant to long-term corrosion resistance.

Decoding the Frame and Pivot Engineering

The 3×3 inch frame tube cross-section provides a deflection threshold that resists twisting during heavy unilateral loading — when a user loads one horn with plates and rows single-arm, the opposing side of the frame must absorb the torsional force without visible flex. Robotic MIG welding produces continuous bead penetration along the full joint length, unlike spot welds that leave unwelded gaps between contact points where fatigue cracks initiate. Sealed bearings at the iso-lateral pivot maintain concentric rotation under off-center loads; when the bearing seal fails, moisture and particulate enter the race and the arm develops lateral play that transmits into the cable path. The plate-loaded design eliminates weight stack guide rods entirely — there is no binding risk from off-center loading because the resistance comes directly from plates on the horn, not from a guided carriage.

The Hidden Cost of Cutting Structure Corners

Thin-wall tubing may look identical in a product photo, but under a loaded single-arm row it deflects enough to shift the movement path away from the intended convergence angle. Spot-welded pivot brackets eventually crack at the edge of the weld nugget — a failure mode that creates sudden structural separation with plates still loaded on the horn. [NEED_CITE: fatigue failure modes in spot-welded structural joints] Unsealed bushings require scheduled replacement every few months in high-traffic environments, and each maintenance event takes the machine offline. Low-density upholstery compresses within weeks on the seat and chest pad, exposing the foam core to sweat infiltration and forcing reupholstery. Insufficient powder coating chips at plate horn contact points, leaving bare steel exposed to humidity and sweat corrosion that spreads beneath adjacent coating.

Why This Build Specification Matters Here

The frame uses 11-gauge Q235 and Q345 steel with mill certification traceable to the coil — not an unverified "commercial-grade" label. Every joint on the commercial plate loaded iso-lateral low row machine carries robotic continuous MIG welds inspected for full penetration, with no spot welds on load-bearing connections. Each unit undergoes per-unit load testing before shipment rather than sample-based QC that leaves unchecked machines in a production batch. The 200μm powder coating over sandblasted steel resists chipping at high-contact points like plate horns and handle mounts. A 10-year frame warranty backs the structural package, and the 1250×1056mm footprint comes with 2D-3D CAD layout support to plan safe clearance spacing between this station and adjacent plate loaded or free weight equipment on the strength floor.

Documentation & Quality Records

• Mill-certified steel specification traceable to the coil for frame tubing
• ISO 9001 quality management system certification
• CE European conformity declaration for commercial fitness equipment
• SGS factory audit verification report
• Per-unit load testing record included with each shipment
• Three-stage QC inspection documentation available on request
• 2D and 3D CAD floor planning files for strength zone layout

Installation, Layout & Maintenance

• Allow minimum clearance around the 1250×1056mm footprint for safe plate loading and user movement
• Floor must be level and rated to support 139kg net weight plus maximum plate load
• Verify all pivot arm bolts at specified torque after initial assembly and again after the first week of use
• Inspect sealed bearings for lateral play quarterly; replace only with matched sealed units
• Wipe powder-coated surfaces with pH-neutral cleaner to preserve the 200μm coating against sweat corrosion
• Check aircraft-cable tension and pulley alignment monthly to prevent off-track cable wear

Requesting a Layout and Specification Match

Provide your strength floor dimensions and current equipment list to receive a 2D-3D layout that positions this low row with correct safety clearances relative to adjacent stations. Specify your average daily traffic volume so the structural grade matches your usage intensity. Confirm the body size range of your primary user population to verify that the iso-lateral arm convergence and seat position accommodate your membership. Note any custom requirements including frame color, logo placement, or upholstery density preferences for OEM private label orders.

Frequently Asked Questions

Q: How do I confirm the frame steel is genuinely commercial-grade and not just labeled that way?
A: Request the mill certificate that traces the steel coil to its production batch. Genuine commercial-grade plate loaded equipment comes with documentation showing the Q235 or Q345 grade, wall thickness, and origin mill. A supplier who cannot provide coil-level traceability is likely sourcing unverified tube stock. [NEED_CITE: steel mill certification standards for structural tubing]

Q: What does continuous MIG welding change compared to spot welding on a low row machine?
A: Continuous MIG welding produces an unbroken weld bead along the entire joint, distributing stress evenly across the connection. Spot welding creates discrete fused points with unwelded gaps between them — those gaps become crack initiation sites under repeated asymmetric plate loading, eventually leading to bracket separation at the pivot arm.

Q: Should I choose plate loaded or selectorized for a high-traffic commercial gym?
A: Plate loaded stations eliminate weight stack guide rods and cables entirely, removing the binding and wear issues that high-traffic selectorized machines develop within the first year. The trade-off is that users must manually load plates, which suits facilities where members are accustomed to plate-based training and floor staff can manage plate organization.

Q: How do I plan spacing between this low row and other stations on the strength floor?
A: Start with the 1250×1056mm footprint and add clearance for plate loading on both horns plus user entry and exit paths. CAD layout files help visualize safe gaps between adjacent equipment, ensuring that loaded barbell paths and plate storage do not overlap with the rowing station’s operational zone.
