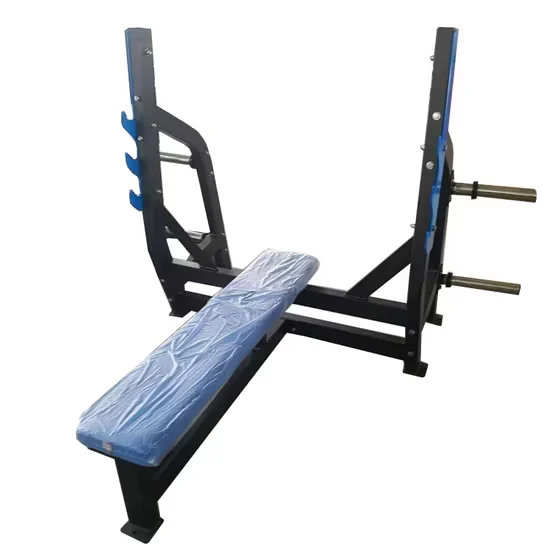

Commercial Flat Bench Waist Machine for Gym

Steel Traceability — 11-gauge Q235/Q345 frame steel sourced with mill certification traceable to the coil, ensuring verifiable structural integrity for every commercial flat bench waist machine produced.

Technical Specifications

Application Suitability

Where a Flat Bench Fails Under Repeated Heavy Loads

Fixed geometry eliminates adjustment mechanisms that introduce play, so structural failure concentrates entirely at the weld joints and frame tubing.

I have seen benches built with vague "commercial grade" tubing that flexes noticeably when a lifter un-racks a heavy dumbbell pair. The deflection is not just uncomfortable — it shifts load paths unpredictably and concentrates stress at joints that were only spot-welded during assembly. Within months of high-traffic use, those spot welds develop hairline cracks that propagate silently until a joint fails outright [NEED_CITE: weld classification and fatigue performance in structural steel]. A commercial flat bench waist machine must handle hundreds of loading cycles daily without any frame flex or joint degradation, which demands verifiable steel gauge and continuous weld lines rather than visual-only inspection standards.

Role in the Free Weight Zone Layout

This flat bench anchors the pressing and accessory work station within a commercial strength floor. It pairs directly with half racks, dumbbell racks, and Olympic platforms, filling the horizontal pressing plane that incline and decline stations do not cover. The fixed flat design means no adjustment knobs or pivot hardware to maintain, which matters in facilities running high member throughput across extended operating hours. The 1353×595mm footprint fits standard barbell loading clearances while leaving safe passage between adjacent stations. Its commercial flat bench waist machine configuration accommodates users across a wide body-type range without requiring seat or backrest adjustments, keeping turnover fast during peak hours.

Stress Accumulation Under Daily Commercial Throughput

A fixed flat bench endures three distinct load categories: static compression from the user’s body weight plus external loading, impact forces when dumbbells or plates are set down on the frame rails, and lateral shear when users shift position during heavy sets. In a gym operating eight or more hours daily, each bench accumulates thousands of load cycles per week, and fatigue stress concentrates at the junctions where the uprights meet the base rails. Continuous robotic MIG welding distributes these forces along the full joint length rather than isolating them at discrete spot-weld points [NEED_CITE: EN 957 structural requirements for stationary training equipment]. The powder coating at contact zones — where barbell knurling, dumbbell handles, and user footwear repeatedly strike the frame — must resist chipping down to bare steel, which is why pre-treatment and coating thickness matter more than color selection alone. Upholstery compression over months of use is a separate wear path that determines whether cushions need replacement or remain serviceable through the equipment’s structural lifespan.

Reading the Specification Sheet Beyond Marketing Claims

The frame tube gauge and wall thickness together determine how much a bench deflects under a loaded barbell before permanent deformation begins. An 11-gauge steel tube at 3×3 inch cross-section provides a deflection threshold that holds steady under heavy dumbbell pressing without the frame "breathing" under load. Robotic MIG welding produces continuous weld beads with consistent penetration depth, eliminating the cold joints and incomplete fusion zones that manual spot welding leaves at load-bearing connections. The 200μm powder coating applied after sandblast pre-treatment creates a surface layer that resists chipping at barbell contact points and withstands daily cleaning with commercial-grade disinfectants. Fixed flat geometry means the entire structure acts as a single rigid body — no pivot pins, no adjustment detents, no moving parts that develop play and require periodic tightening.

What Cost-Cutting Looks Like Six Months After Installation

A bench built with thin-wall tubing will show visible frame flex under moderate loads long before the steel reaches its yield point, and that flex accelerates fatigue at every welded joint. Spot-welded connections pass initial visual inspection but concentrate stress into small weld zones that crack under the cyclic loading of daily commercial use. Non-industrial powder coatings chip at contact points within weeks, exposing bare steel to sweat and humidity that trigger surface corrosion. Low-density upholstery foam compresses permanently within months, creating uneven surfaces that lifters notice immediately and that require cushion replacement — a maintenance cost that compounds across dozens of benches on a strength floor [NEED_CITE: upholstery compression standards for commercial fitness equipment]. Non-standard hardware and proprietary fasteners mean that when replacement parts are needed, they cannot be sourced locally and the bench sits out of service until the original supplier ships components.

Why Structural Specifications Matter for This Category

The 11-gauge Q235/Q345 frame steel on this commercial flat bench waist machine arrives with mill certification traceable to the production coil, so steel grade is documented rather than claimed. Robotic MIG welding runs continuous beads along every load-bearing joint, eliminating the weak points that spot welding introduces at high-stress connections. Each unit undergoes load testing before shipment as part of a three-stage QC inspection process — not sample-based testing on one unit per batch. The 200μm industrial powder coating is applied after sandblast pre-treatment, providing adhesion and chip resistance at the contact zones where equipment takes the most abuse. A 10-year frame warranty backs the structural specification, and 2D-3D CAD layout support ensures this bench is positioned with correct barbell loading clearances and safe passage widths in your strength zone floor plan. OEM customization extends to frame color, cushion color, and branding so the equipment matches facility design requirements.

Documentation & Quality Records

• Mill certification for Q235/Q345 frame steel traceable to coil origin
• ISO 9001 quality management system certificate
• CE conformity declaration for commercial fitness equipment
• EN 957 test report covering structural load and stability requirements
• SGS factory audit verification report
• Individual load test record for each bench unit before shipment
• Three-stage QC inspection documentation per production batch
• 2D-3D CAD layout files for strength zone floor planning

Installation, Layout & Maintenance

• Position with minimum clearance on all sides for safe dumbbell and barbell loading
• Verify floor levelness across the 1353×595mm footprint to prevent frame racking
• Assemble uprights to base rails using specified bolt torque and apply thread-locking compound
• Re-torque all frame fasteners after the first 30 days of commercial use
• Inspect powder coating at contact zones quarterly and touch up any chips to prevent corrosion
• Check upholstery mounting hardware and cushion condition during monthly maintenance rounds
• Clean frame with pH-neutral cleaner to preserve the 200μm industrial coating

Planning Your Flat Bench Procurement

Provide your strength zone floor area and existing equipment list so we can generate a 2D-3D layout that positions each bench with correct barbell clearance and safe traffic flow. Specify your facility’s daily user volume to confirm the structural grade matches your throughput requirements. Share your target user demographic so we can verify the fixed flat dimensions accommodate the expected body-type range without modification. Indicate any customization needs — frame color, cushion color, or logo application — so OEM specifications are confirmed before production begins.

Frequently Asked Questions

Q: How do I distinguish a commercial-grade flat bench from light-commercial based on frame specs?
A: Request the steel gauge, tube dimensions, and mill certification from the supplier. Commercial-grade benches use 11-gauge or heavier steel with documented grade specifications like Q235 or Q345. Verify the welding method — continuous robotic MIG welds at load-bearing joints outperform spot welding under repeated heavy loading. Ask for load test records on individual units, not just sample-based batch testing.

Q: What frame specifications prevent flex during heavy dumbbell pressing?
A: An 11-gauge steel frame with 3×3 inch tube cross-section provides the deflection threshold needed for heavy barbell and dumbbell work. The tube wall thickness and continuous weld lines at every joint connection prevent the frame from flexing or "breathing" under load. Fixed flat designs eliminate adjustment mechanisms that introduce play over time.

Q: Why does welding method matter for bench longevity in commercial gyms?
A: Continuous robotic MIG welding distributes stress along the entire joint length, producing consistent penetration depth without cold joints or incomplete fusion zones. Spot welding concentrates stress at discrete points that become crack initiation sites under thousands of daily load cycles. The difference becomes visible within months of high-traffic commercial use.

Q: How should I plan bench spacing for safe barbell loading in a strength zone?
A: Each bench needs clearance on all sides for users to load and unload dumbbells or barbells safely, plus passage width between stations for other members to walk through. A 2D-3D CAD floor plan positions benches accounting for these clearances and matches equipment density to your facility’s peak-hour traffic patterns.
